Question: a. Given the circuit below, fill its truth table. b. Download Logisim, build this circuit with Logisim and then simulate one of the rows and

a. Given the circuit below, fill its truth table. b. Download

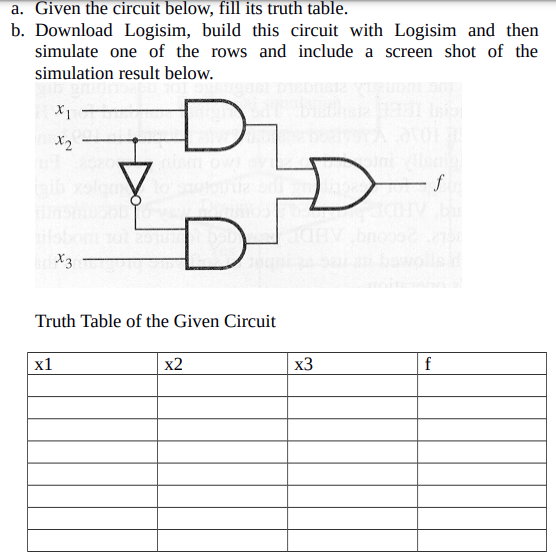

a. Given the circuit below, fill its truth table. b. Download Logisim, build this circuit with Logisim and then simulate one of the rows and include a screen shot of the simulation result below. X1 X2 f D X3 Truth Table of the Given Circuit x1 x2 x3 f

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
