Question: ( a ) Given the following truth table: ( i ) Use Karnaugh map to simplify the function.

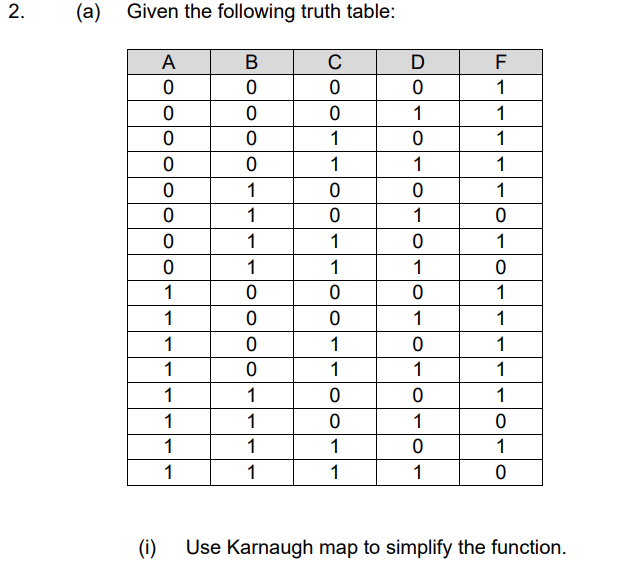

(a) Given the following truth table:
(i) Use Karnaugh map to simplify the function.
(a) Given the following truth table: (i) Use Karnaugh map to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
