Question: a ) Identify the type ( simple , compound, complex ) , stability and static determinacy of the truss b ) Determine the vertical and

a) Identify the type (simple, compound, complex),stability and static determinacy of the truss

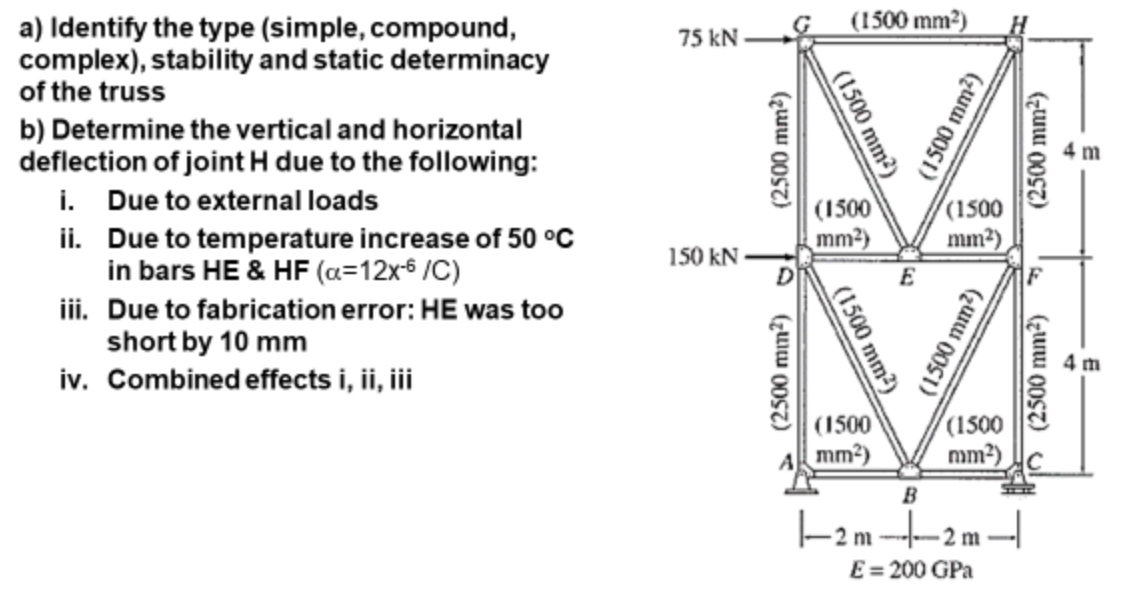

b) Determine the vertical and horizontal deflection of joint H due to the following:
i. Due to external loads
ii. Due to temperature increase of 50C in bars HE & HF (=12x-6C)
a ) Identify the type ( simple , compound,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
