Question: A is a pin and C is a roller support, if the weight of the overhanging beam is negligible, the internal moment at section B

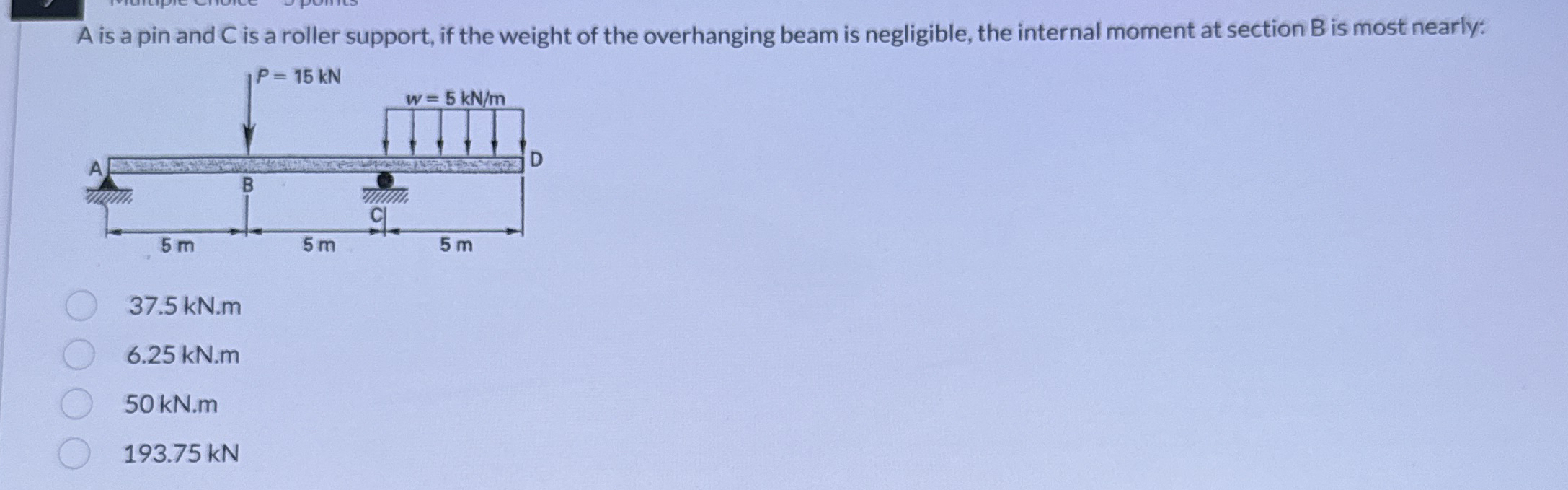

A is a pin and C is a roller support, if the weight of the overhanging beam is negligible, the internal moment at section B is most nearly:
37.5 kN.m
6.25 kN.m
50 kN.m
193.75 kN
A is a pin and C is a roller support, if the
