Question: A logic gate has two inputs, IN1 and IN2, and an output OUT. We know the following about this gate: When IN1 = 0 and

A logic gate has two inputs, IN1 and IN2, and an output OUT. We know the following about this gate:

When IN1 = 0 and IN2 = 1, the output OUT = 1.

What kind of gate do we have? Answer the questions below.

A logic gate has two inputs, IN1 and IN2, and an output

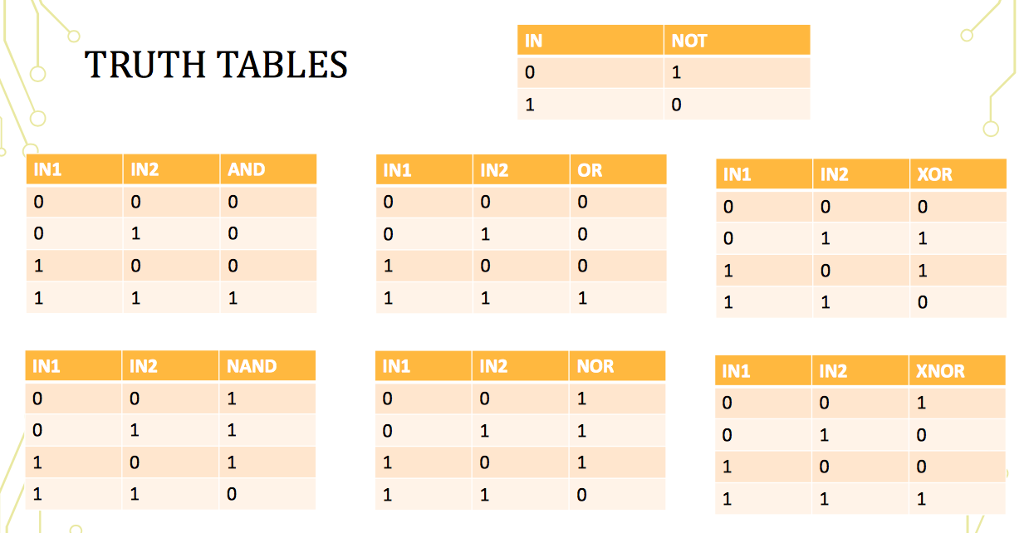

This might help...

OUT. We know the following about this gate: When IN1 = 0

Expert Answer

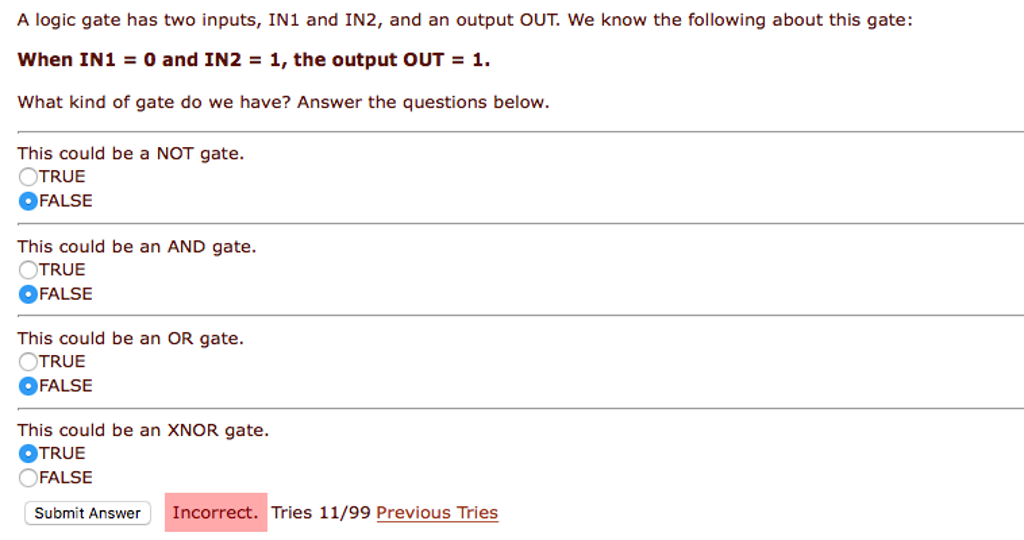

A logic gate has two inputs, IN1 and IN2, and an output OUT. We know the following about this gate: When IN1 = 0 and IN2 = 1, the output OUT = 1. What kind of gate do we have? Answer the questions below. This could be a NOT gate. OTRUE FALSE This could be an AND gate. OTRUE FALSE This could be an OR gate. TRUE FALSE This could be an XNOR gate. TRUE OFALSE Submit Answer Incorrect. Tries 11/99 Previous Tries

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
