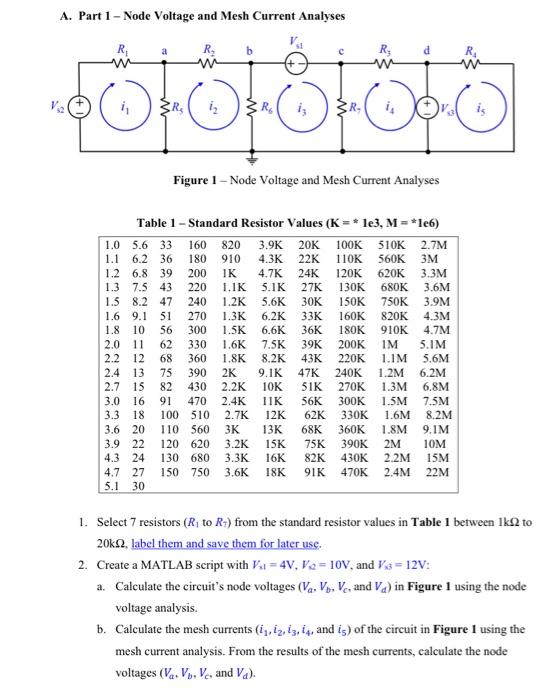

Question: A. Part 1 - Node Voltage and Mesh Current Analyses Figure 1 - Node Voltage and Mesh Current Analyses Tahle 1 - Standard Resistor Valnes

A. Part 1 - Node Voltage and Mesh Current Analyses Figure 1 - Node Voltage and Mesh Current Analyses Tahle 1 - Standard Resistor Valnes (K=1e3.M=1e6) 1. Select 7 resistors (R1 to R7) from the standard resistor values in Table 1 between 1k to 20k, label them and save them for later use. 2. Create a MATLAB script with V31=4V,V2=10V, and Vs=12V : a. Calculate the circuit's node voltages (Va,Vb,Vc, and Vd) in Figure 1 using the node voltage analysis. b. Calculate the mesh currents (i1,i2,i3,i4, and i5) of the circuit in Figure 1 using the mesh current analysis. From the results of the mesh currents, calculate the node voltages (Va,Vb,Vc, and Vd)
