Question: A PC16550D UART has a clock running at 18.432 MHz and its baud rate is set to 2000. Determine the HEX contents of its DLM

A PC16550D UART has a clock running at 18.432 MHz and

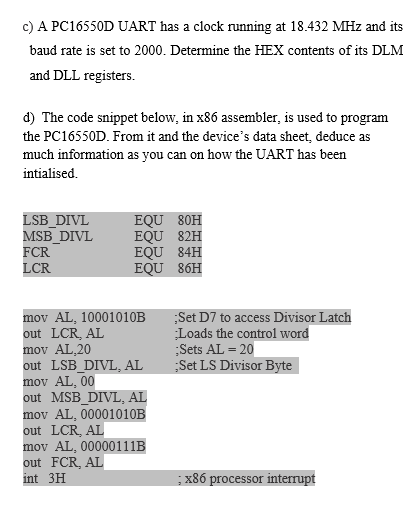

A PC16550D UART has a clock running at 18.432 MHz and its baud rate is set to 2000. Determine the HEX contents of its DLM and DLL registers. d) The code snippet below, in x86 assembler, is used to program the PC16550D. From it and the device's data sheet deduce as much information as you can on how the UART has been intialised

Step by Step Solution
