A$)$ Process cycle time $=12$ min, System process time $=36$ min, Weekly capacity$=240$ units

B$)$ Process cycle time $=12$min, System process time $=36$min, Weekly capacity $=160$ units

C$)$ Process cycle time $=18$min, System process time $=36$ min, Weekly capacity $=160$ units

D$)$ Process cycle time $=36$min, System process time $=36$min, Weekly capacity $=80$ units

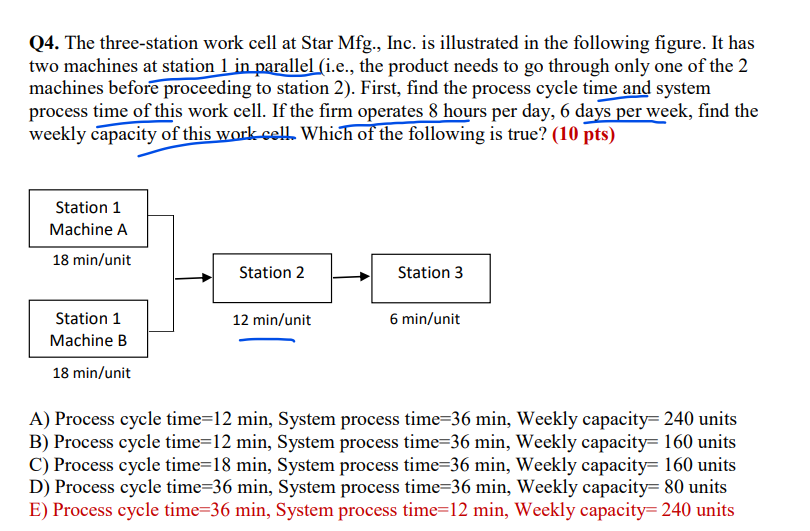

E$)$ Process cycle time $=36$min, System process time $=12$min, Weekly capacity $=240$ unitsThe three$-$station work cell at Star Mfg$.,$ Inc. is illustrated in the following figure. It has

two machines at station $1$ in parallel $($i$.$e$.,$ the product needs to go through only one of the $2$

machines before proceeding to station $2).$ First, find the process cycle time and system

process time of this work cell. If the firm operates $8$ hours per day, $6$ days per week, find the

weekly capacity of this work cell. Which of the following is true? $(10$ pts$)$

A$)$ Process cycle time$=12$ min, System process time$=36$ min, Weekly capacity$=240$ units

B$)$ Process cycle time$=12$ min, System process time$=36$ min, Weekly capacity$=160$ units

C$)$ Process cycle time$=18$ min, System process time$=36$ min, Weekly capacity$=160$ units

D$)$ Process cycle time$=36$ min, System process time$=36$ min, Weekly capacity$=80$ units

E$)$ Process cycle time$=36$ min, System process time$=12$ min, Weekly capacity$=240$ units

Process cycle time$=18+12+6=36$ minutes

System process time$=12$ min$/$unit

Weekly capacity$=60*8*6/12=2880/12=240$ units$/$week

Station $1$

Machine A

Station $1$

Machine B

Station $2$ Station $3$

$18$ min$/$unit

$18$ min$/$unit
