A process is described by the following transfer function: 5(s-1)e S 100s +1 Design an IMC...
Fantastic news! We've Found the answer you've been seeking!
Question:
Transcribed Image Text:

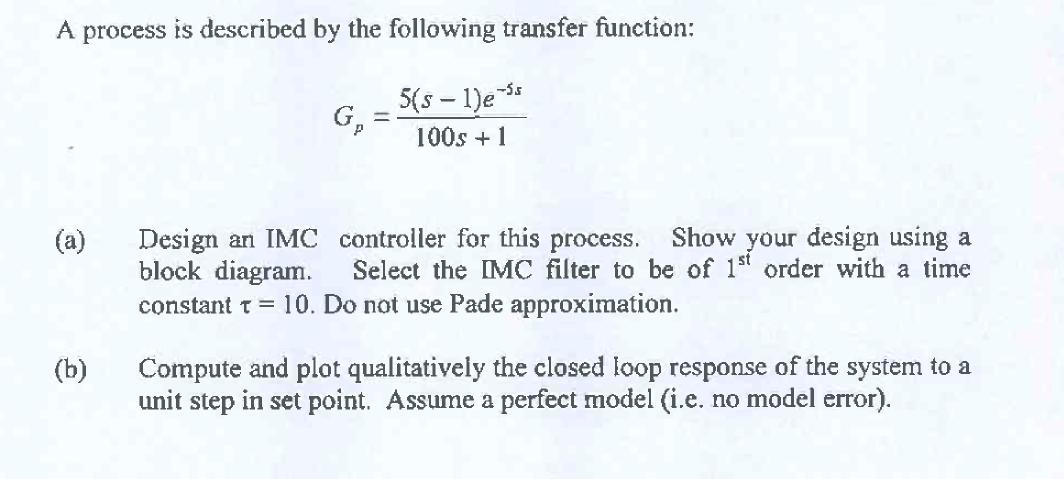

A process is described by the following transfer function: 5(s-1)e S 100s +1 Design an IMC controller for this process. block diagram. constant t = 10. Do not use Pade approximation. (a) Show your design using a Select the IMC filter to be of 1st order with a time Compute and plot qualitatively the closed loop response of the system to a unit step in set point. Assume a perfect model (i.e. no model error). (b) A process is described by the following transfer function: 5(s-1)e S 100s +1 Design an IMC controller for this process. block diagram. constant t = 10. Do not use Pade approximation. (a) Show your design using a Select the IMC filter to be of 1st order with a time Compute and plot qualitatively the closed loop response of the system to a unit step in set point. Assume a perfect model (i.e. no model error). (b)
