Question: A process liquid is to be delivered using a multistage centrifugal pump, as illustrated schematically) below. The process liquid has a specific gravity of 1.22

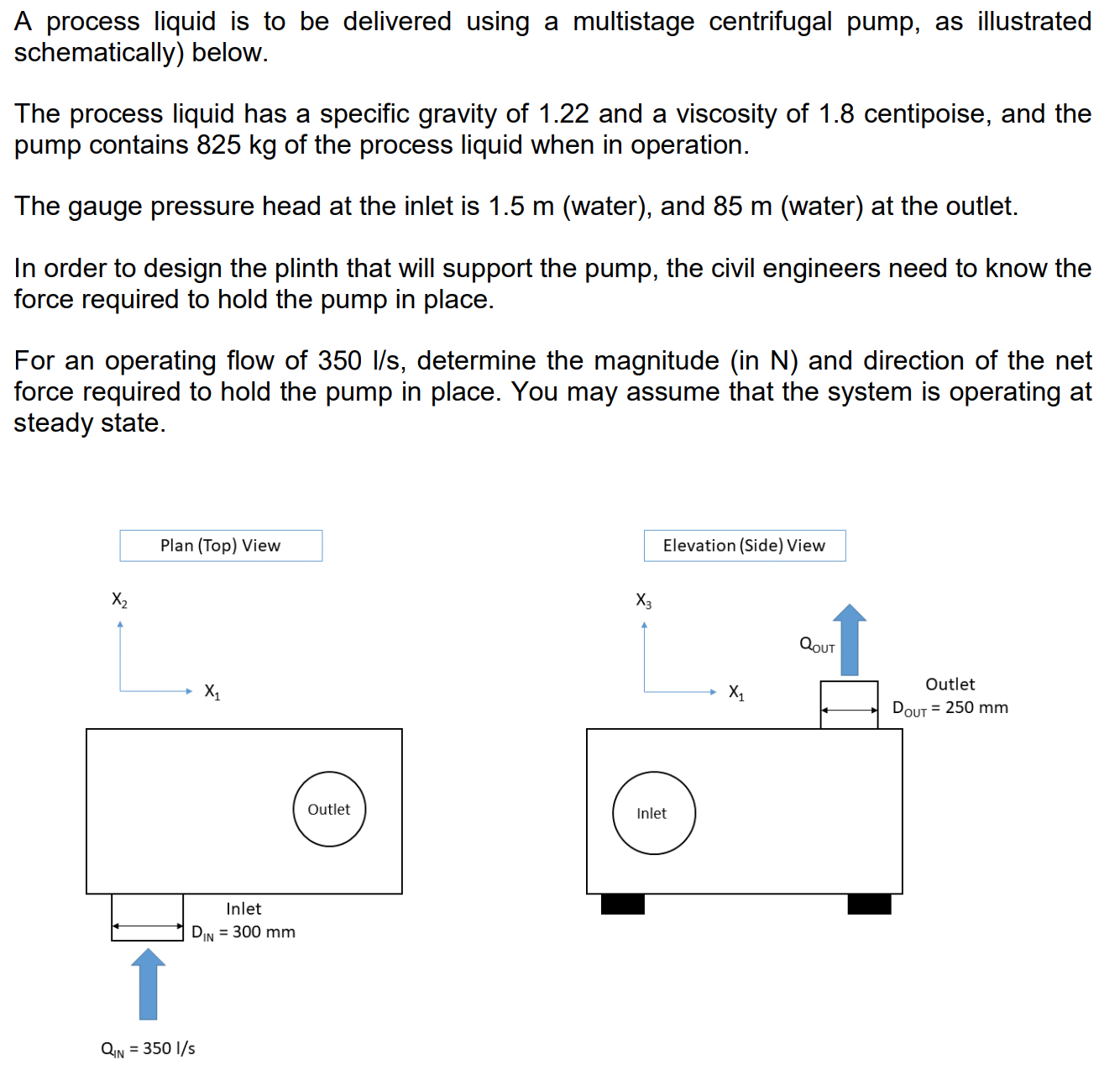

A process liquid is to be delivered using a multistage centrifugal pump, as illustrated schematically) below. The process liquid has a specific gravity of 1.22 and a viscosity of 1.8 centipoise, and the pump contains 825kg of the process liquid when in operation. The gauge pressure head at the inlet is 1.5m (water), and 85m (water) at the outlet. In order to design the plinth that will support the pump, the civil engineers need to know the force required to hold the pump in place. For an operating flow of 350l/s, determine the magnitude (in N ) and direction of the net force required to hold the pump in place. You may assume that the system is operating at steady state

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
