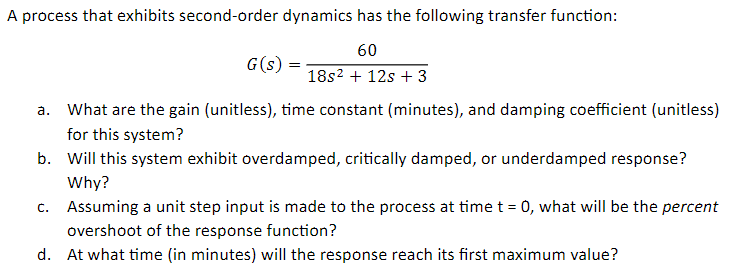

A process that exhibits second-order dynamics has the following transfer function:
G(s)=6018s2+12s+3
a. What are the gain (unitless), time constant (minutes), and damping coefficient (unitless)
for this system?
b. Will this system exhibit overdamped, critically damped, or underdamped response?
Why?
c. Assuming a unit step input is made to the process at time t=0, what will be the percent
overshoot of the response function?
d. At what time (in minutes) will the response reach its first maximum value?
 A process that exhibits second-order dynamics has the following transfer function:
