Question: ASAP PLEASE a) Consider a second order system with the following transfer function? G(s)=f(s)Y(s)=s2+s+11 Introduce a step change of magnitude one into the system and

ASAP PLEASE a) Consider a second order system with the following

ASAP PLEASE

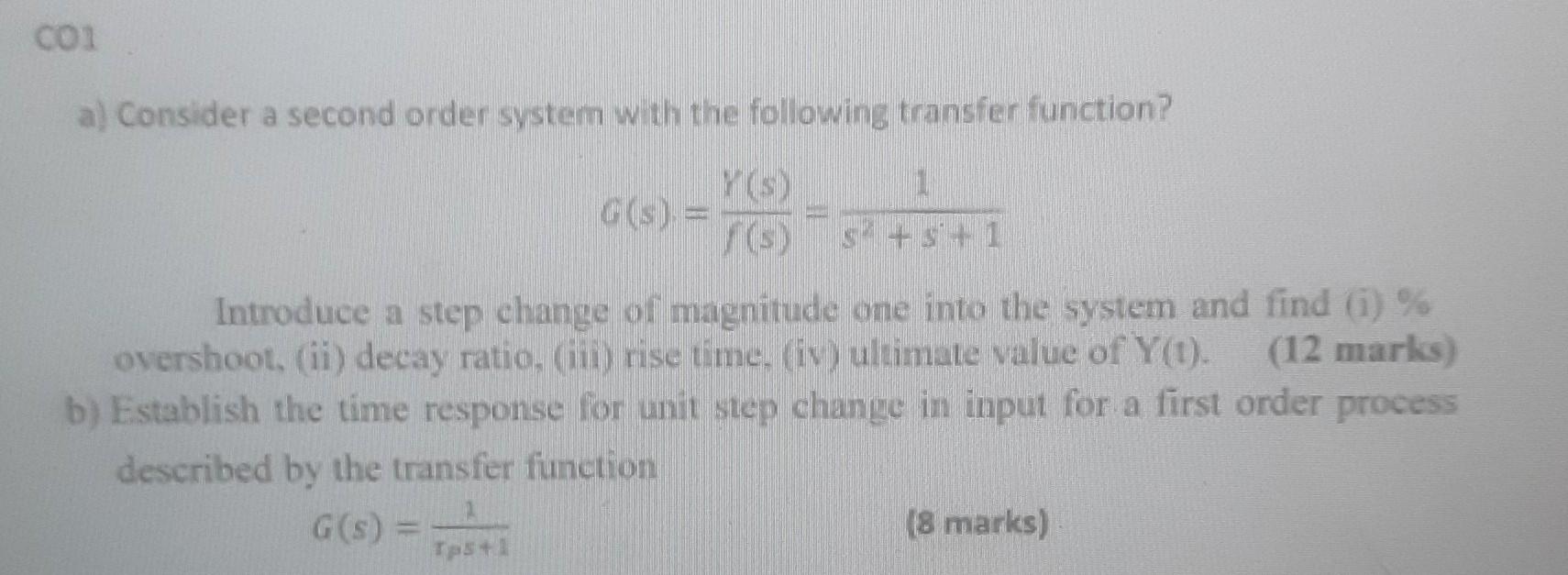

a) Consider a second order system with the following transfer function? G(s)=f(s)Y(s)=s2+s+11 Introduce a step change of magnitude one into the system and find (i) % overshoot, (ii) decay ratio, (iii) rise time, (iv) ultimate value of Y(1). (12 marks) b) Establish the time response for unit step change in input for a first order process described by the transfer function G(s)=rps+11 ( 8 marks)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
