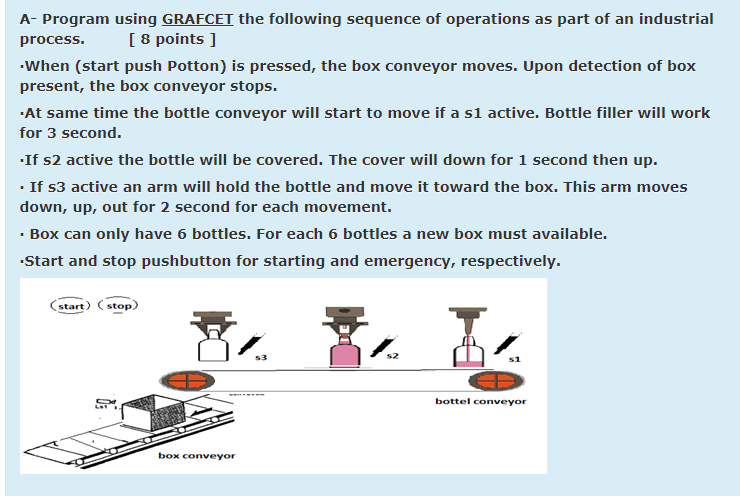

A- Program using GRAFCET the following sequence of operations as part of an industrial process. [ 8 points ] When (start push Potton) is pressed, the box conveyor moves. Upon detection of box present, the box conveyor stops. At same time the bottle conveyor will start to move if a si active. Bottle filler will work for 3 second. If s2 active the bottle will be covered. The cover will down for 1 second then up. . If s3 active an arm will hold the bottle and move it toward the box. This arm moves down, up, out for 2 second for each movement. Box can only have 6 bottles. For each 6 bottles a new box must available. Start and stop pushbutton for starting and emergency, respectively. . start) (stop) bottel conveyor box conveyor A- Program using GRAFCET the following sequence of operations as part of an industrial process. [ 8 points ] When (start push Potton) is pressed, the box conveyor moves. Upon detection of box present, the box conveyor stops. At same time the bottle conveyor will start to move if a si active. Bottle filler will work for 3 second. If s2 active the bottle will be covered. The cover will down for 1 second then up. . If s3 active an arm will hold the bottle and move it toward the box. This arm moves down, up, out for 2 second for each movement. Box can only have 6 bottles. For each 6 bottles a new box must available. Start and stop pushbutton for starting and emergency, respectively. . start) (stop) bottel conveyor box conveyor
