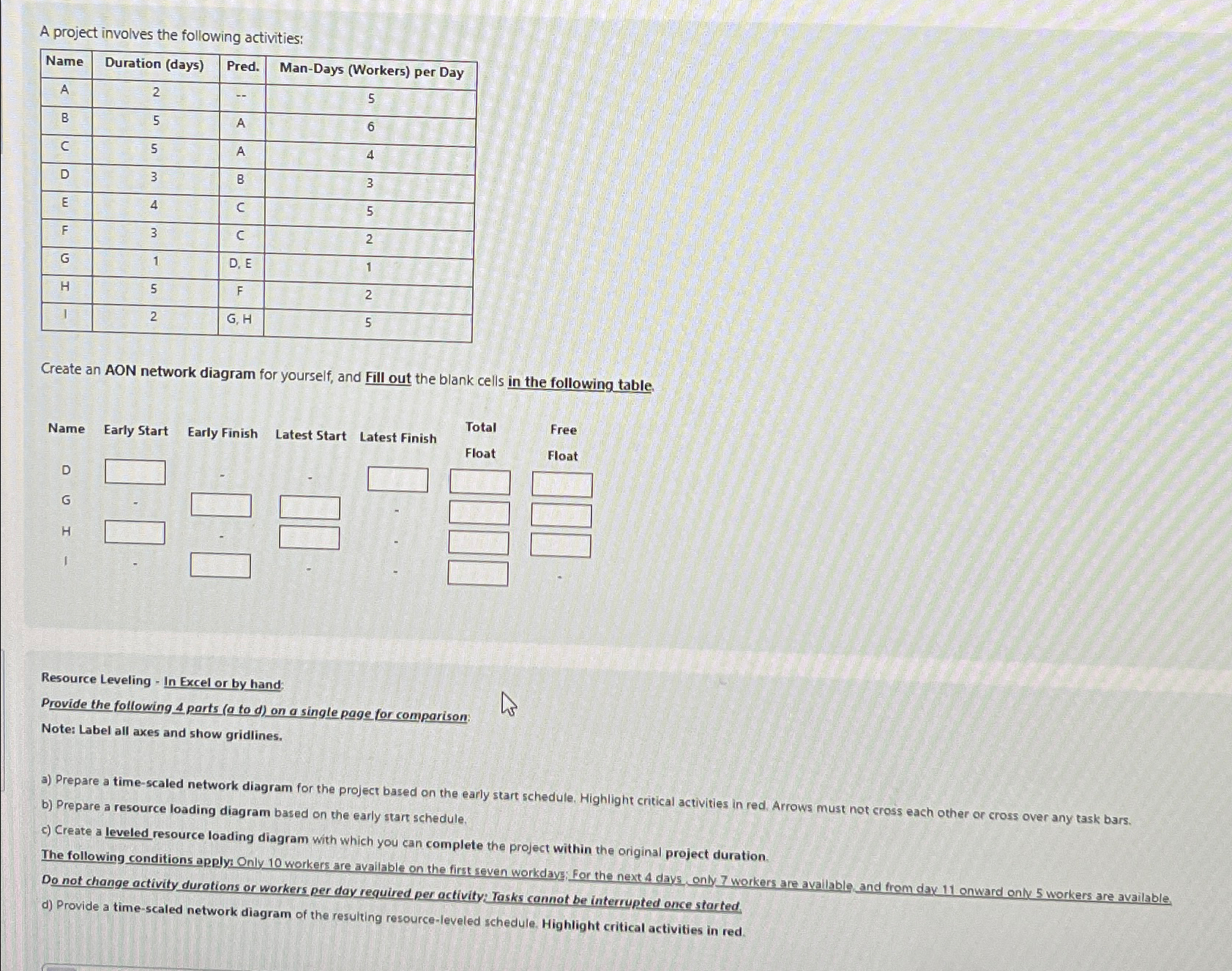

A project involves the following activities:

$\backslash$table$[[$Name$,$Duration $($days$),$Pred.,Man$-$Days $($Workers$)$ per Day$],[$A$,2,-,5],[$B$,5,$A$,6],[$C$,5,$A$,4],[$D$,3,8,3],[$E$,4,$C$,5],[$F$,3,$C$,2],[$G$,1,$D$,$ E$,1],[$H$,5,$F$,2],[$I$,2,$G$,$ H$,5]]$

Create an AON network diagram for yourself, and Fill out the blank cells in the following table.

Name Early Start Early Finish Latest Start Latest Finish

Total

Float

D

G

$H$

I

Resource Leveling $-$ In Excel or by hand:

Provide the following $4$ parts $($a to $d)$ on a single page for comparison:

Note: Label all axes and show gridlines.

b$)$ Prepare a resource loading diagram based on the early start schedule.

Free

Float

Floa

c$)$ Create a leveled resource loading diagram with which you can complete the project within the original project duration.

The following conditions apply: Only $10$ workers are avaliable on the first seven workdays: for the next $4$ days, only $7$ workers are avaliable, and from dave $11$ onward only $5$ workers are available.

Do not change activity durations or workers per day required per activity: Tasks cannot be interrupted once started.

d$)$ Provide a time$-$scaled network diagram of the resulting resource$-$leveled schedule. Highlight critical activities in red.
