Question: A propeller shaft of solid circular cross section and diameter d is spliced by a collar of the same material ( see figure ) .

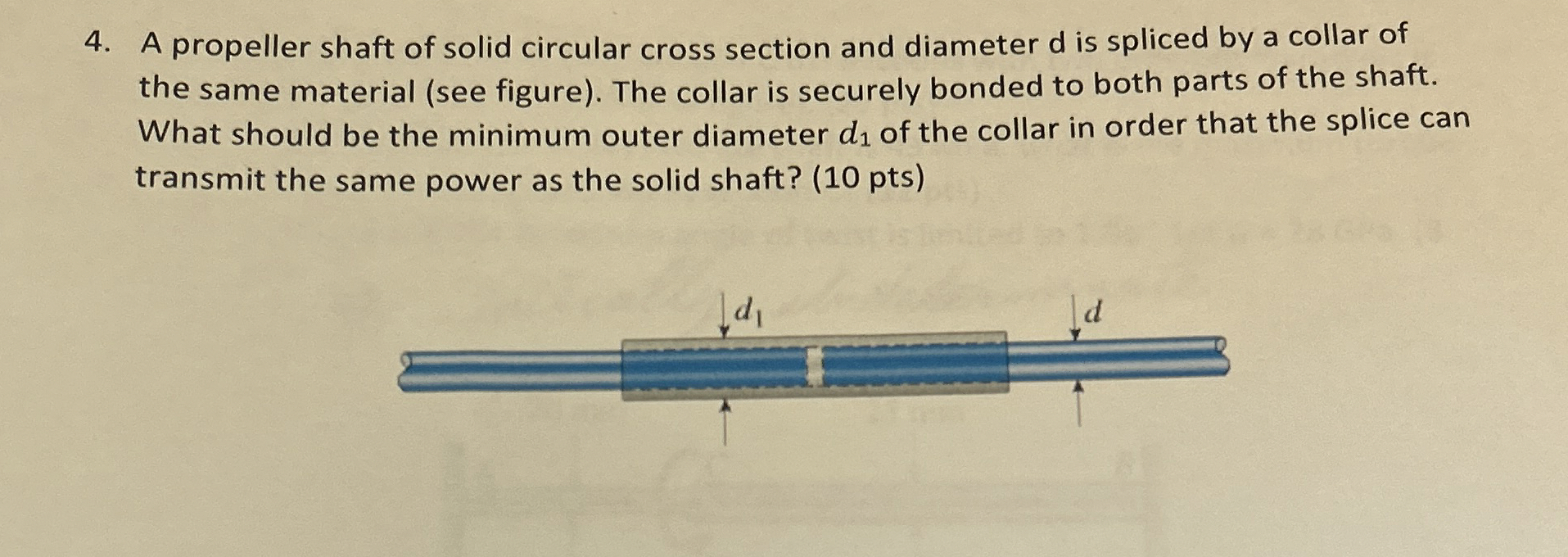

A propeller shaft of solid circular cross section and diameter d is spliced by a collar of the same material (see figure). The collar is securely bonded to both parts of the shaft. What should be the minimum outer diameter d1 of the collar in order that the splice can transmit the same power as the solid shaft? (10 pts)
A propeller shaft of solid circular cross section

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

4 . A propeller shaft of solid circular cross section and diameter \ ( d \ ) is spliced by a collar of the same material ( see figure ) . The collar is securely bonded to both parts of the shaft....

Q:

A propeller shaft of solid circular cross section and diameter d is spliced by a collar of the same material (see figure). The collar is securely bonded to both parts of the shaft. What should be the...

Q:

A 5 0 m long propeller solid shaft for a ship has been designed for a low - carbon steel that has an allowable shear stress of 9 0 MPa. To safely carry the design torque with the low - carbon steel...

Q:

A 4 0 0 mm diameter solid propeller shaft has an output of 1 6 MW . When the forward speed of the vessel is 8 . 3 3 m / s , the speed of the propeller is 1 2 0 rpm . The propeller has a mass of 1 2...

Q:

OUESTION 3 [ COMBINED LOADING AND PRINCIPAL STRESSES ] The propeller shaft of a ship is solid circular in cross - section ( diameter = 0 . 4 5 m ) . While cruising down a section of a local river,...

Q:

The propeller shaft of a ship is solid circular in cross - section ( diameter = 0 . 4 5 m ) . While cruising down a section of a local river, the engine of the boat delivered a power of 1 5 MW when...

Q:

A tapered solid steel propeller shaft is shown in Fig. 1.91. Determine the torsional spring constant of the shaft. 0.2 m- Steel, G 80 10 Pa = 1 m T 0.1 m FIGURE 1.91 A tapered solid propeller shaft.

Q:

Do all parts in detail Initial 3 . Consider the propeller shaft made of steel ( Yield in Shear: S n = 2 5 0 MPa ) . The shaft transmits 5 0 0 kW power at 2 0 0 0 rpm . Determine: ( i ) - the Minimum...

Q:

Torsional vibration question Figure Q4 shows the layout of a yacht power unit in which a 4 cylinder, 2 stroke diesel engine is represented by J. Its flywheel J is integral with the pinion J3, which...

Q:

A 250 mm diameter solid propeller shaft has an output of 6 MW. When the forwardspeed of the vessel is 20 knots, the speed of the propeller is 240 rpm. Calculate: (a) The max. shear stress due to the...
