Question: A rectangular gate is hinged at the top edge at P Given that gate height = 2 . 5 m and gate width = 0

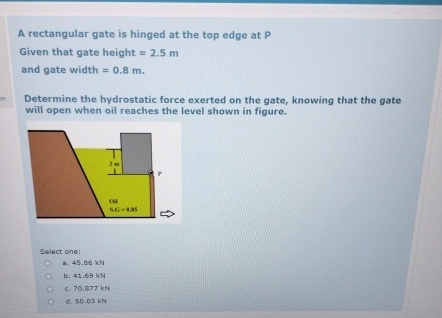

A rectangular gate is hinged at the top edge at P
Given that gate height =2.5m
and gate width =0.8m.
Determine the hydrostatic force exerted on the gate, knowing that the gate will open when oil reaches the level shown in figure.
Select one:
a.45.86km
b.41.69kN
c.70.877kN
d.50,03kN
A rectangular gate is hinged at the top edge at P
