Question: A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AC is 8 4 N , determine the weight

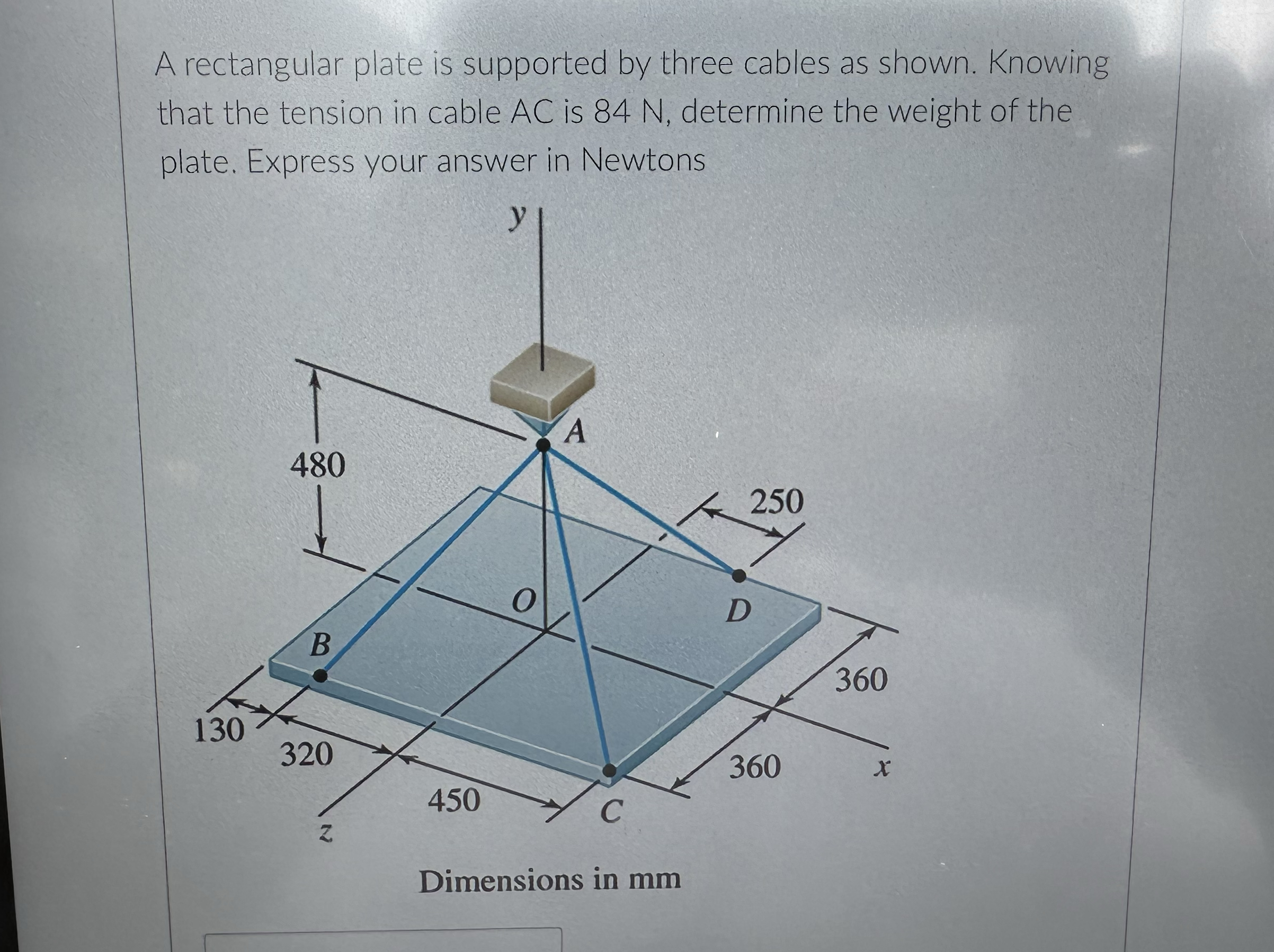

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AC is 84 N , determine the weight of the plate. Express your answer in Newtons
A rectangular plate is supported by three cables

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AD is 120 lb, determine the weight of the plate. 36 imemsioos in mehes

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AD is 520 N, determine the weight of the plate. 480 250 360 130 320 360 x 450 Dimensions in mm

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AD is 195 lb, determine the components of the force exerted on the plate at D. 36 Dimnensios in nehes

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AD is 195 lb, determine the components of the force exerted on the plate at D. 36 Dimensions in hehos

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AC is 15 lb, determine the weight of the plate. 45 Diunsions in kuetes

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AC is 60 N, determine the weight of the plate. 480 250 360 360 x 450 Dimensioms in inm

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AD is 120 lb, determine the weight of the plate. Djunnsious in ioehes

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AB is 408 N, determine the components of the force exerted on the plate at B. 480 250 0 3 360 130 360 450

Q:

A rectangular plate is supported by three cables as shown. Knowing that the tension in cable AD is 429 N, determine the components of the force exerted on the plate at D. 180 250 3 360 130 320 360 x...

Q:

For the boom and loading of Problem. 2.97, determine the magnitude of the load P. PROBLEM 2.97 The boom OA carries a load P and is supported by two cables as shown. Knowing that the tension in cable...
