Question: ( a ) Replace the distributed loading by an equivalent resultant force and couple moment acting at point B . ( b ) Replace the

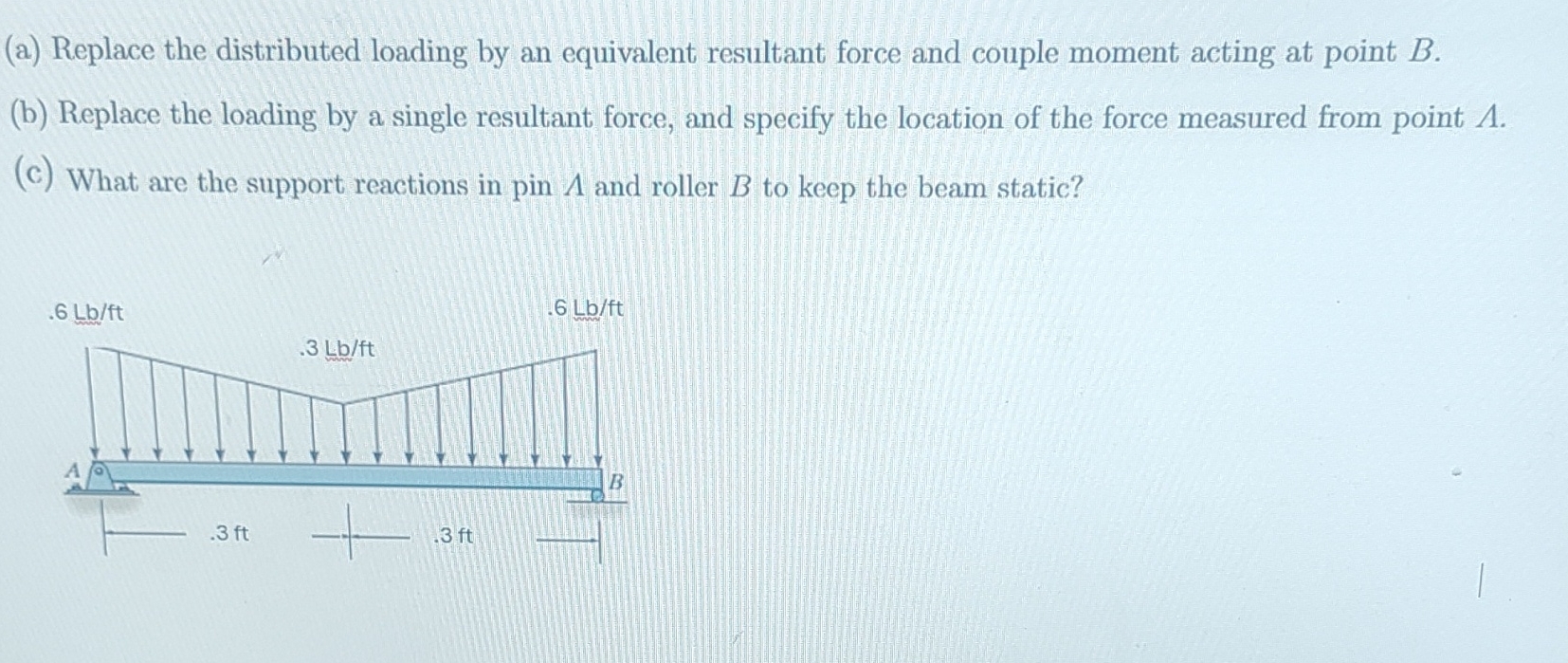

(a) Replace the distributed loading by an equivalent resultant force and couple moment acting at point B.
(b) Replace the loading by a single resultant force, and specify the location of the force measured from point A.
(c) What are the support reactions in pin A and roller B to keep the beam static?
( a ) Replace the distributed loading by an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

In ( Figure 1 ) , w 1 = 2 . 5 k N m and w 2 = 6 k N m Replace the distributed loading by an equivalent resultant force and couple moment acting at point A Part A Determine the equivalent resultant...

Q:

Replace the distributed loading by an equivalent resultant force and couple moment acting at point A. 6 kN/m 6 kN/m 3 kN/m B -3 m 3 m

Q:

l n ( Figure 1 ) , w 1 = 2 k N m and w 2 = 7 k N m . Replace the distributed loading by an equivalent resultant force and couple moment acting at point A . Figure 1 of 1

Q:

Problem 5 (20 Points): Replace the distributed loading by an equivalent resultant force and couple moment acting at point A

Q:

In ( Figure 1 ) , w 1 = 3 k N m and w 2 = 8 k N m . Replace the distributed loading by an equivalent resultant force and couple moment acting at point A .

Q:

* 4 - 1 6 0 . Replace the distributed loading by an equivalent resultant force and couple moment acting at point A .

Q:

Replace the distributed loading by an equivalent resultant force and couple moment acting at point A . ( 2 0 Points )

Q:

In (Figure 1), w1=3.5kN/m and w2=6.5kN/m. Replace the distributed loading by an equivalent resultant force and couple moment acting at point A. Figure 1 of 1 Determine the equivalent resultant force....

Q:

In ( Figure 1 ) , w 1 = 4 k N m and w 2 = 7 . 5 k N m . Replace the distributed loading by an equivalent resultant force and couple moment acting at point A . Determine the equivalent resultant...

Q:

In ( Figure 1 ) , w 1 = 4 k N m and w 2 = 6 k N m . Replace the distributed loading by an equivalent resultant force and couple moment acting at point A . Figure 1 of 1 Part A Determine the...
