Question: A ring is made from a 7 5 mm diameter bar. The inside diameter of the ring is 1 0 0 mm . For the

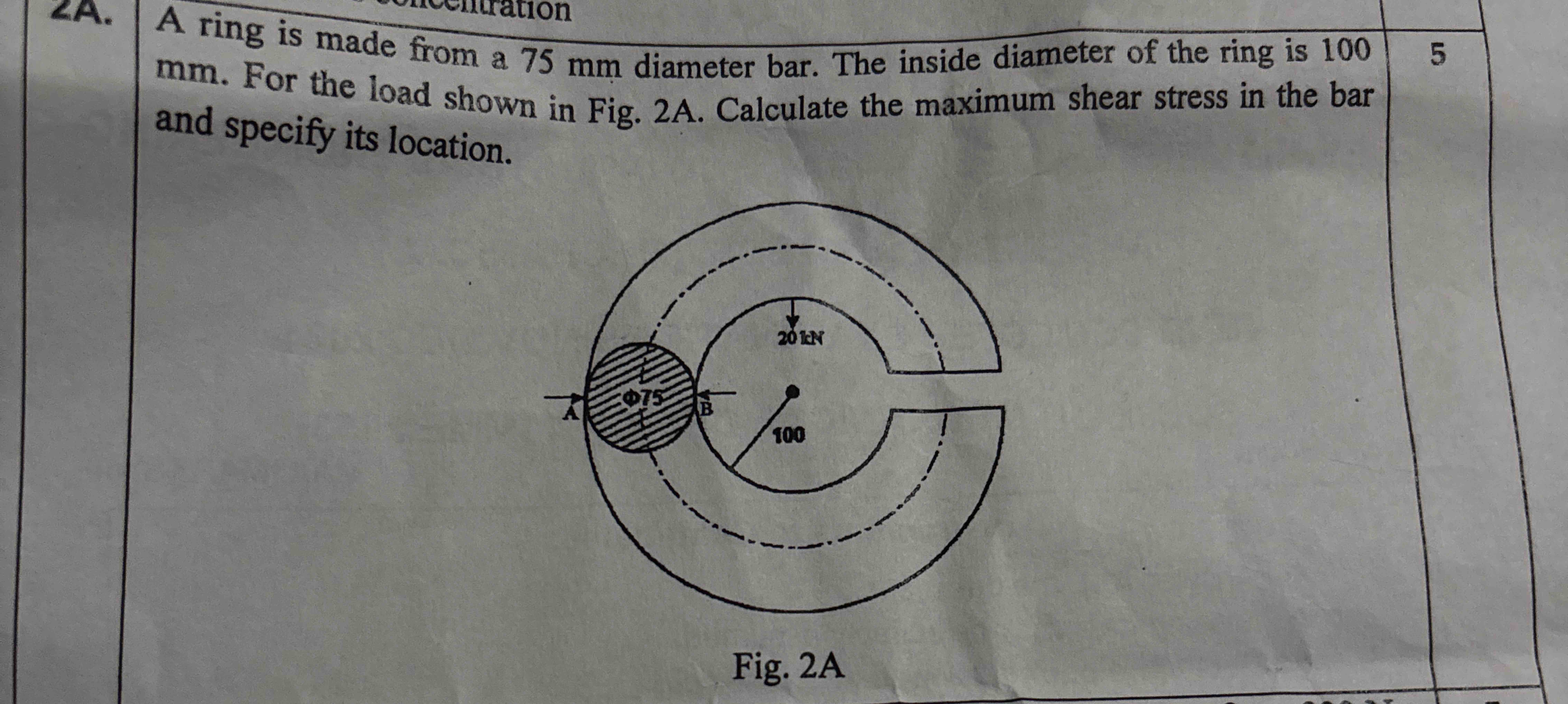

A ring is made from a 75 mm diameter bar. The inside diameter of the ring is 100 mm . For the load shown in Fig. 2A. Calculate the maximum shear stress in the bar and specify its location.
TIg. \(\angle A \)
A ring is made from a 7 5 mm diameter bar. The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
