Question: A sequential circuit has two flip - flops ( A and B ) , one input ( X ) , and one output ( Y

A sequential circuit has two flip-flops (A and B ), one input (X), and one output (Y).

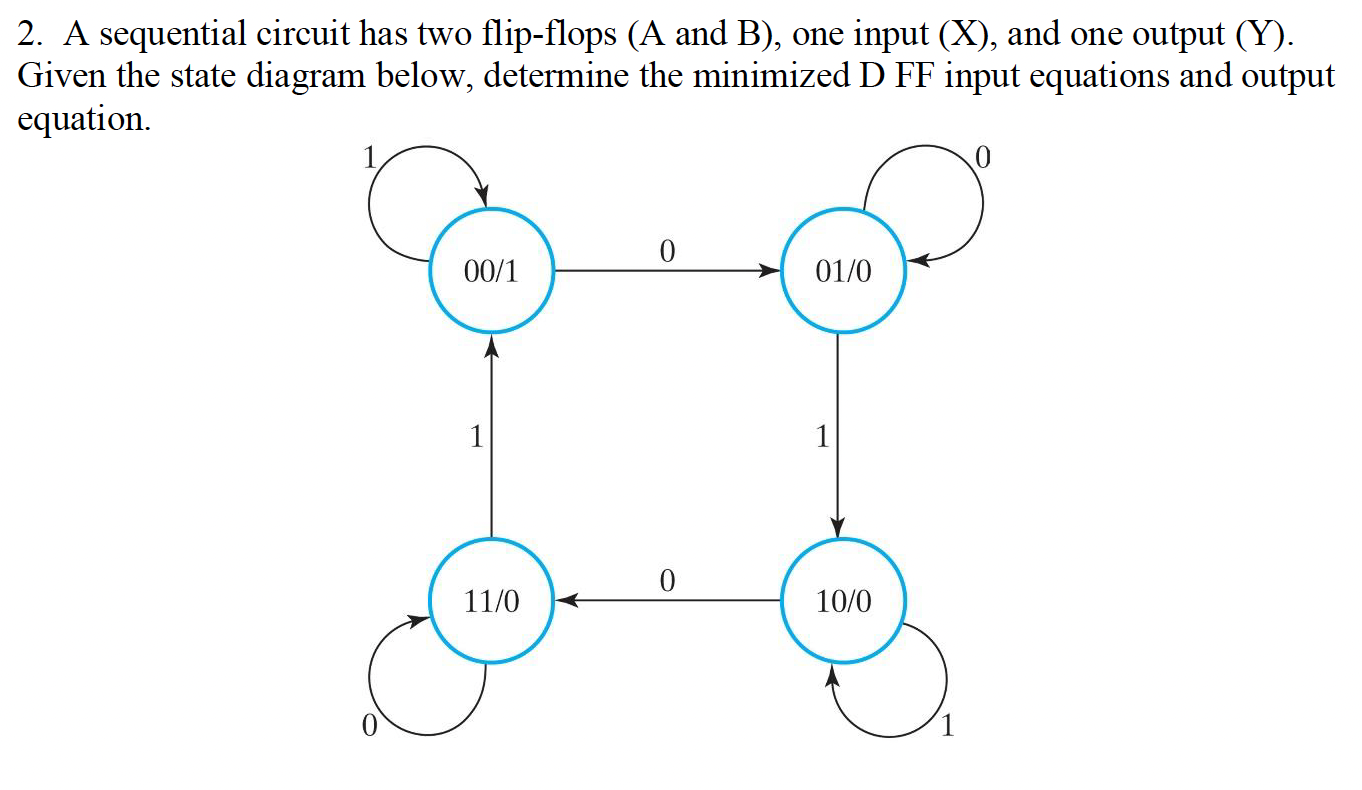

Given the state diagram below, determine the minimized D FF input equations and output
equation.
Include K map for DA, DB and Y
A sequential circuit has two flip - flops ( A and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
