Question: A sequential circuit has two inputs, w1 and w2, and an output, z. Its function is to compare the input sequences on the two inputs.

A sequential circuit has two inputs, w1 and w2, and an

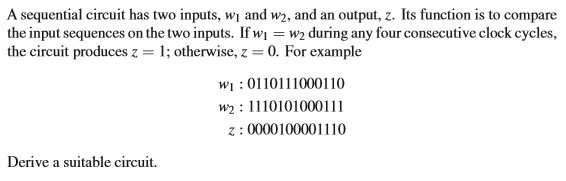

A sequential circuit has two inputs, w1 and w2, and an output, z. Its function is to compare the input sequences on the two inputs. Ifwi -w2 during any four consecutive clock cycles, the circuit produces z1; otherwise, z-0. For example w1:0110111000110 w2 1110101000111 z: 0000100001110 Derive a suitable circuit
