Question: A sequential circuit has two inputs, xi and x2, and an output y. Its function is to compare the input sequences on the two inputs.

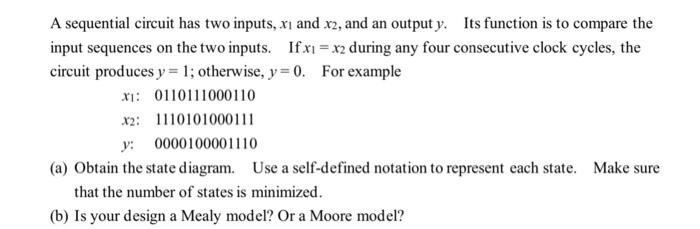

A sequential circuit has two inputs, xi and x2, and an output y. Its function is to compare the input sequences on the two inputs. If x1 = x2 during any four consecutive clock cycles, the circuit produces y = 1; otherwise, y = 0. For example xi: 0110111000110 X2: 1110101000111 y: 0000100001110 (a) Obtain the state diagram. Use a self-defined notation to represent each state. Make sure that the number of states is minimized. (b) Is your design a Mealy model? Or a Moore model

Step by Step Solution
