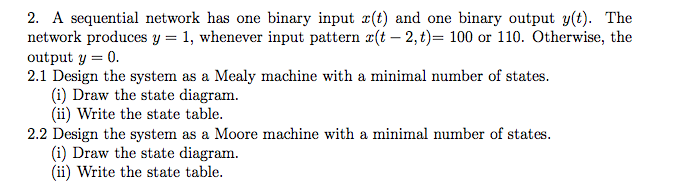

A sequential network has one binary input x(t) and one binary output y(t). The network produces y = 1, whenever input pattern x(t - 2,t)= 100 or 110. Otherwise, the output y = 0. Design the system as a Mealy machine with a minimal number of states. Draw the state diagram. Write the state table. Design the system as a Moore machine with a minimal number of states. Draw the state diagram. Write the state table. A sequential network has one binary input x(t) and one binary output y(t). The network produces y = 1, whenever input pattern x(t - 2,t)= 100 or 110. Otherwise, the output y = 0. Design the system as a Mealy machine with a minimal number of states. Draw the state diagram. Write the state table. Design the system as a Moore machine with a minimal number of states. Draw the state diagram. Write the state table
