Question: A specimen with the given dimension is loaded as given in the figure below. Determine; a ) The stresses in each direction. b ) The

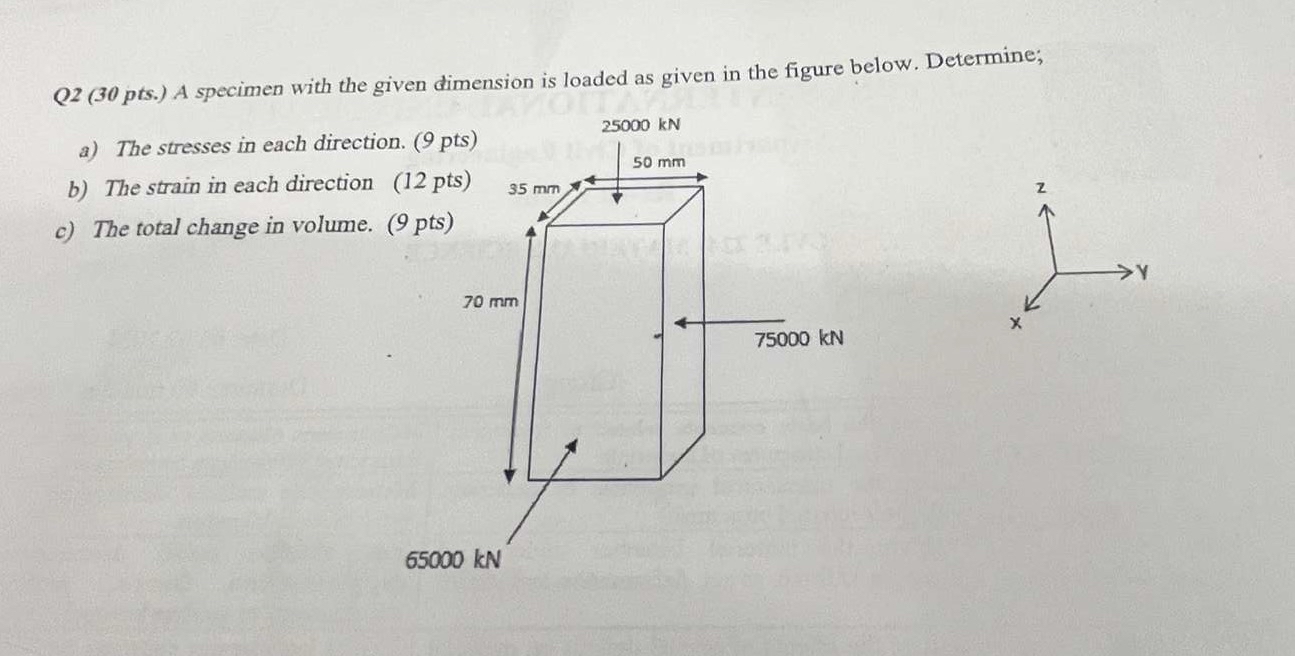

A specimen with the given dimension is loaded as given in the figure below. Determine;
a) The stresses in each direction.
b) The strain in each direction
c) The total change in volume.
A specimen with the given dimension is loaded as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
