Question: A stepped shaft ABC consisting of two solid, circular segments is subjected to uniformly distributed torque t 1 acting over segment 1 and concentrated torque

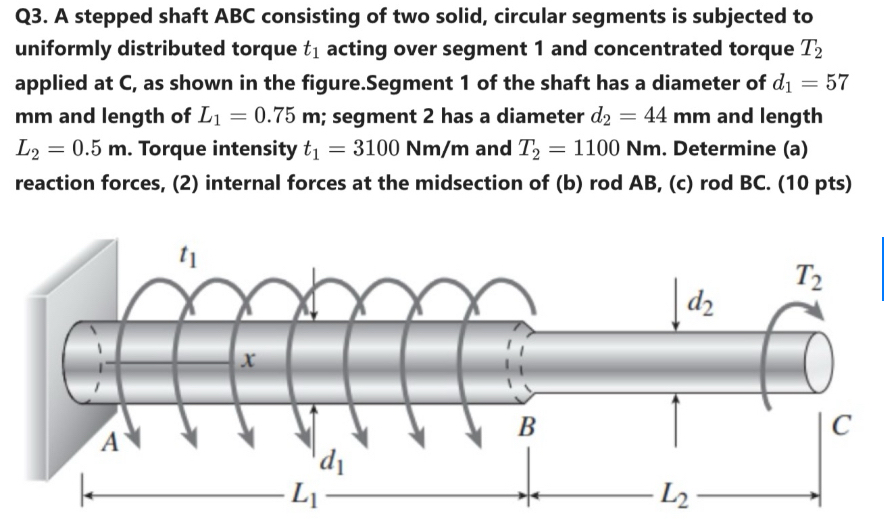

A stepped shaft ABC consisting of two solid, circular segments is subjected to uniformly distributed torque t1 acting over segment 1 and concentrated torque T2 applied at C, as shown in the figure.Segment 1 of the shaft has a diameter of d1=57 mm and length of L1=0.75m; segment 2 has a diameter d2=44mm and length L2=0.5m. Torque intensity t1=3100Nmm and T2=1100Nm. Determine (a) reaction forces, (2) internal forces at the midsection of (b) rod AB,(c) rod BC.
A stepped shaft ABC consisting of two solid,
