Question: F: A control system for heating a historical, 1 0 0 - year - old room is being designed. The room can be modeled using

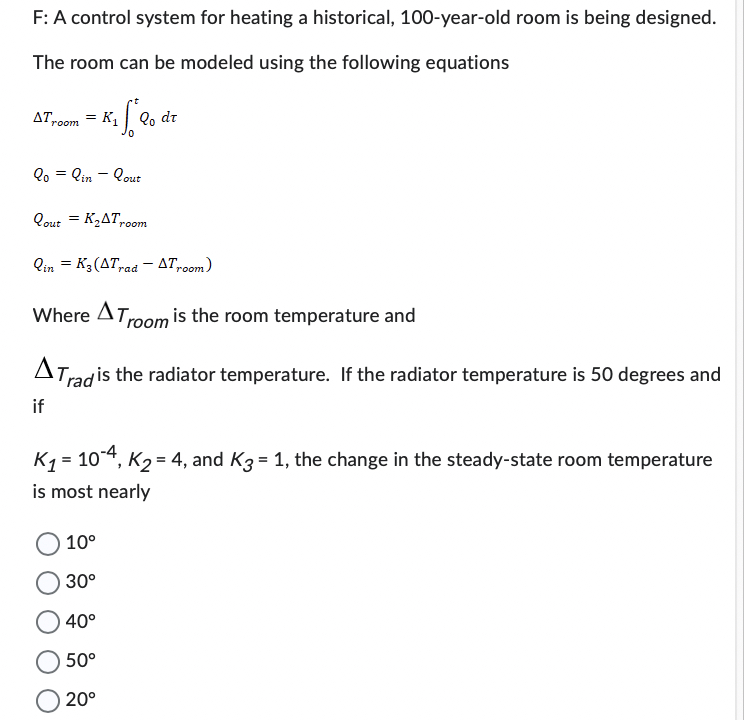

F: A control system for heating a historical, 100-year-old room is being designed.
The room can be modeled using the following equations
Troom=K10tQ0d
Q0=Qin-Qout
Qout=K2Troom
Qin=K3(Trad-Troom)
Where Troom is the room temperature and
Trad is the radiator temperature. If the radiator temperature is 50 degrees and if K1=10-4,K2=4, and K3=1, the change in the steady-state room temperature is most nearly
10
30
40
50
20
F: A control system for heating a historical, 1 0
