Question: A stepper motor with 60 step angles is coupled to a leadscrew through a gear reduction of 4:1 .The leadscrew has 1:2 threads/m.the worktable driven

A stepper motor with 60 step angles is coupled to a

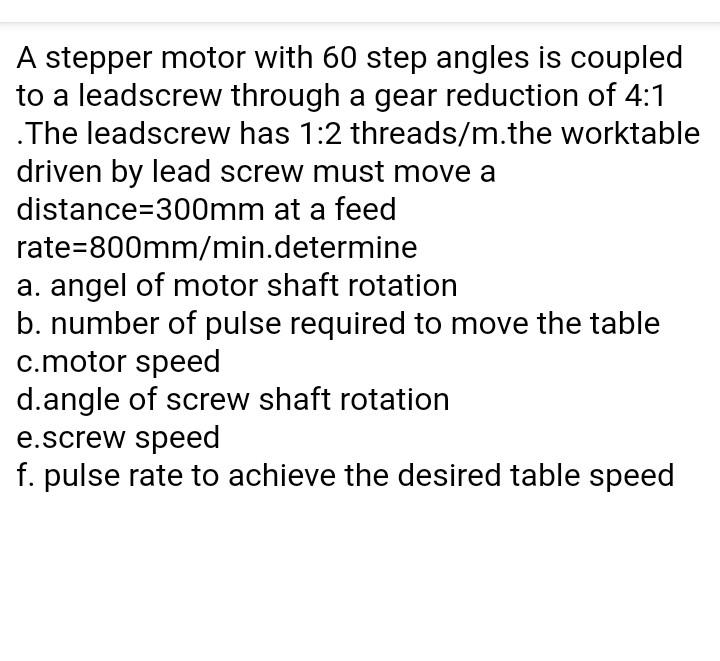

A stepper motor with 60 step angles is coupled to a leadscrew through a gear reduction of 4:1 .The leadscrew has 1:2 threads/m.the worktable driven by lead screw must move a distance =300mm at a feed rate =800mm/min. determine a. angel of motor shaft rotation b. number of pulse required to move the table c.motor speed d.angle of screw shaft rotation e.screw speed f. pulse rate to achieve the desired table speed
