Question: A store sign is hung by two cables from post A B . The post is hinged at A and is supported by cable B

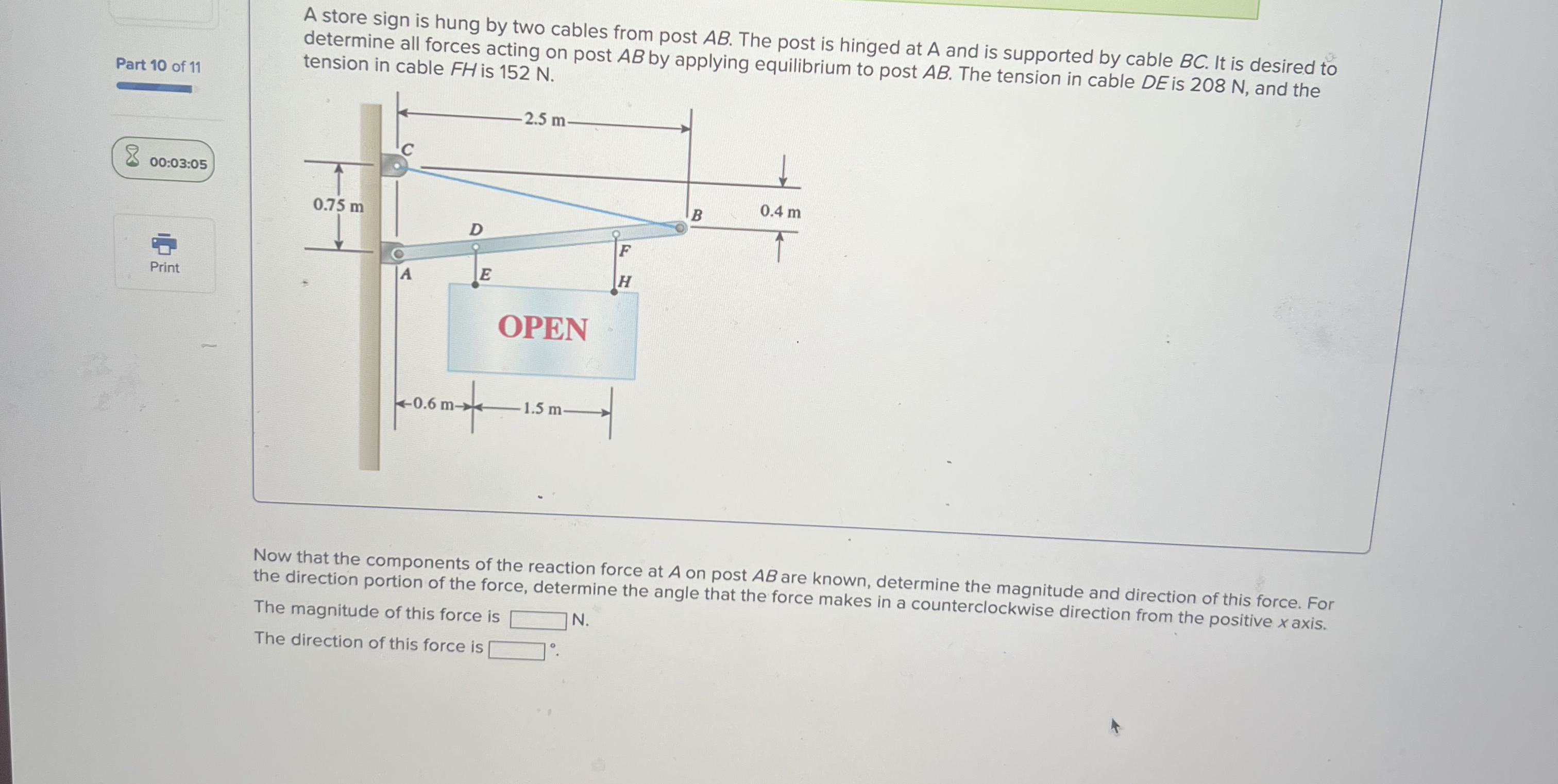

A store sign is hung by two cables from post AB. The post is hinged at A and is supported by cable BC. It is desired to determine all forces acting on post AB by applying equilibrium to post AB. The tension in cable DE is 208 N , and the tension in cable FH is 152 N .
Now that the components of the reaction force at A on post AB are known, determine the magnitude and direction of this force. For the direction portion of the force, determine the angle that the force makes in a counterclockwise direction from the positive x axis.
The magnitude of this force is N.
The direction of this force is
A store sign is hung by two cables from post A B
