Question: A system has a transfer function given by the following equation: Y(s) X(s) 80 + 5s + 50 The system is subjected to a

A system has a transfer function given by the following equation: Y(s)

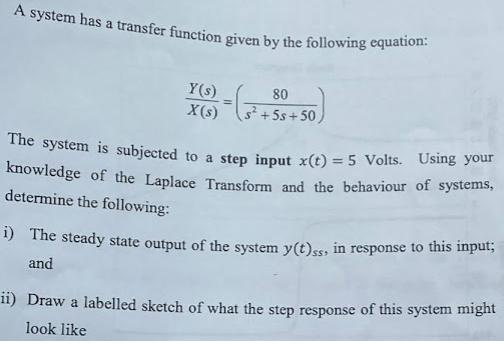

A system has a transfer function given by the following equation: Y(s) X(s) 80 + 5s + 50 The system is subjected to a step input x(t) = 5 Volts. Using your knowledge of the Laplace Transform and the behaviour of systems, determine the following: %3D 1) The steady state output of the system y(t)ss, in response to this inpul, and ii) Draw a labelled sketch of what the step response of this system might look like

Step by Step Solution

★★★★★

3.40 Rating (147 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
