Question: A system has two blocks, ml and m 2 , on an inclined plane, attached by a rope on a pulley. Draw a FBD of

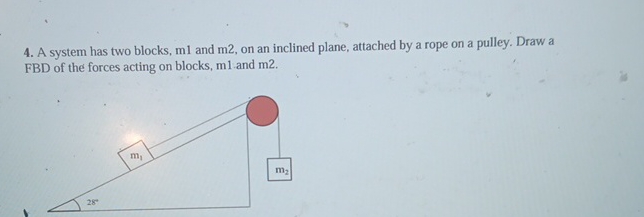

A system has two blocks, ml and m 2, on an inclined plane, attached by a rope on a pulley. Draw a FBD of the forces acting on blocks, m 1 and m 2.
