Question: A T - shape beam has the cross section shown below, ( 1 ) If an internal bending moment of 2 0 kips f t

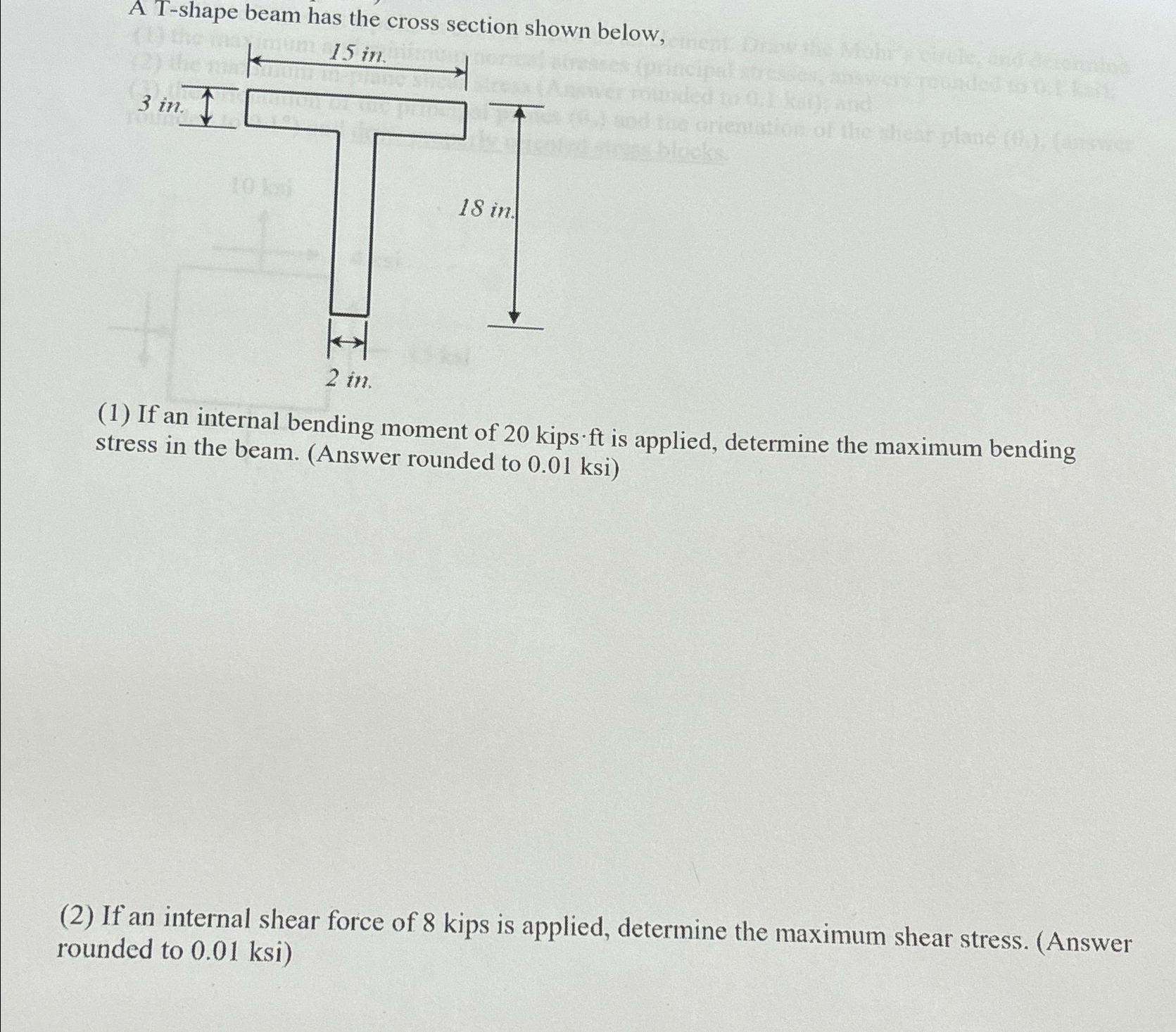

A T-shape beam has the cross section shown below,
(1) If an internal bending moment of 20 kips ft is applied, determine the maximum bending stress in the beam. (Answer rounded to 0.01ksi )
(2) If an internal shear force of 8kips is applied, determine the maximum shear stress. (Answer rounded to 0.01ksi )
A T - shape beam has the cross section shown
