Question: a . The student concept is not appropriate for a system in this diagram b . Billing clerk is not represented as interacting with the

a. The student concept is not appropriate for a system in this diagram
b. Billing clerk is not represented as interacting with the system
c. Referral source is listed twice as an external entity
d. Medical staff has no interactions listed underneath it
e. External entities are represented with rectangles

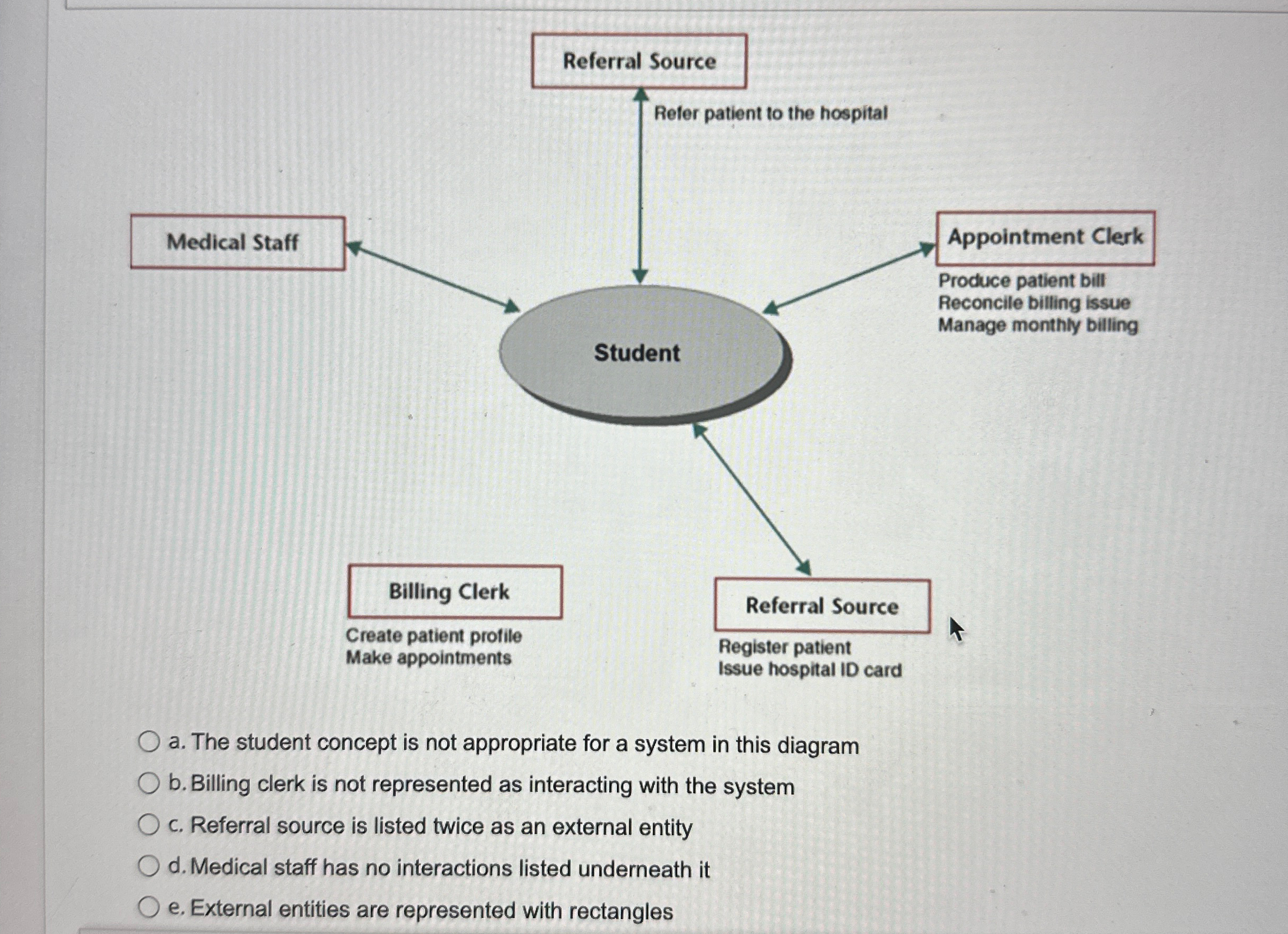

There are 5 mistakes in context diagram below. Which of the following is NOT one of these 5 mistakes?
a. The student concept is not appropriate for a system in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
