Question: A triangular distributed load of max intensity w = 6 0 0 N m acts on beam A B . The beam is supported by

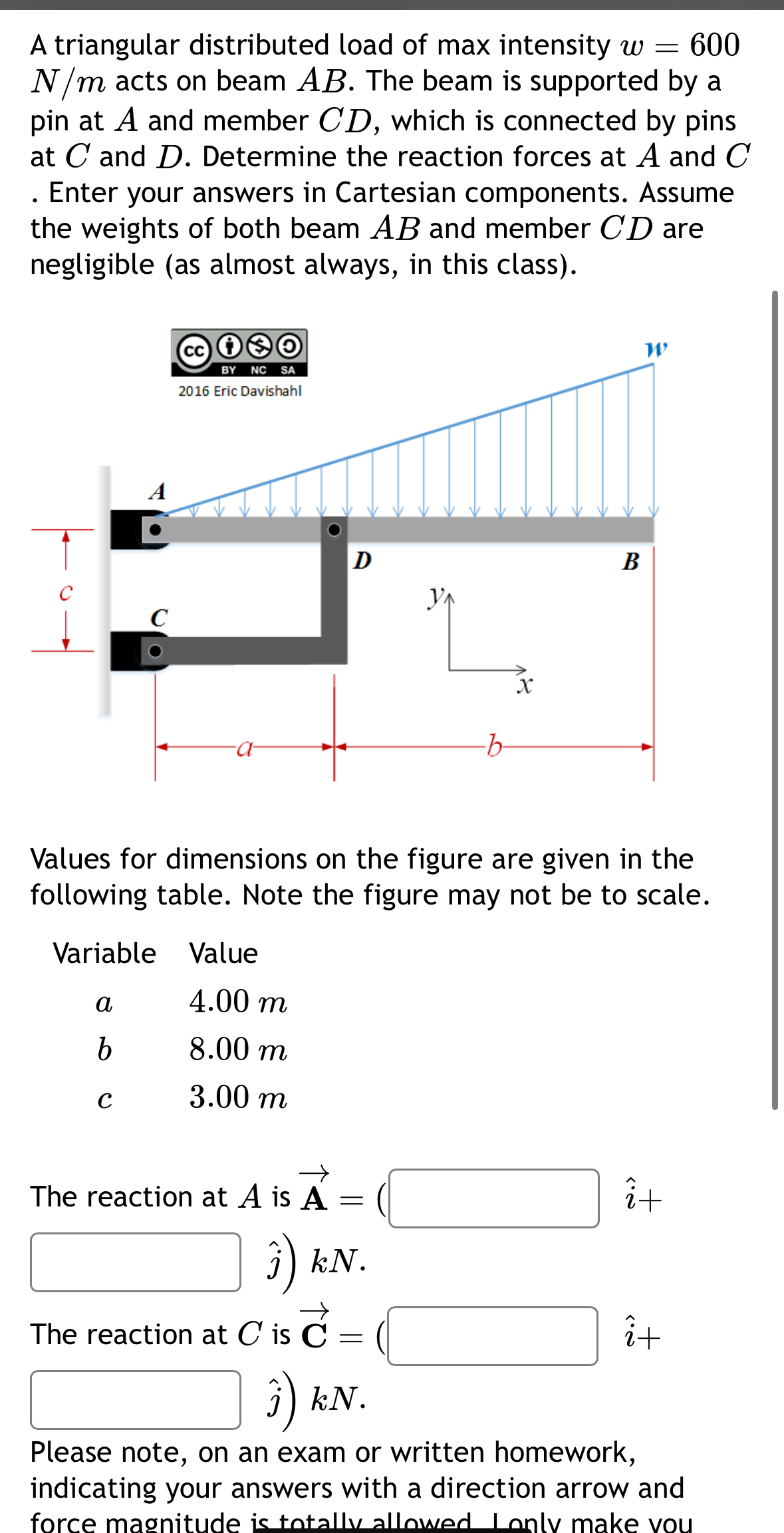

A triangular distributed load of max intensity w=600Nm acts on beam AB. The beam is supported by a pin at A and member CD, which is connected by pins at C and D. Determine the reaction forces at A and C. Enter your answers in Cartesian components. Assume the weights of both beam AB and member CD are negligible (as almost always, in this class).
Values for dimensions on the figure are given in the following table. Note the figure may not be to scale.
\table[[Variable,Value],[a,4.00m
