Question: A truss analysis includes consideration of Joint A as shown. If P is 5 . 9 kN and Q is 3 . 9 kN ,

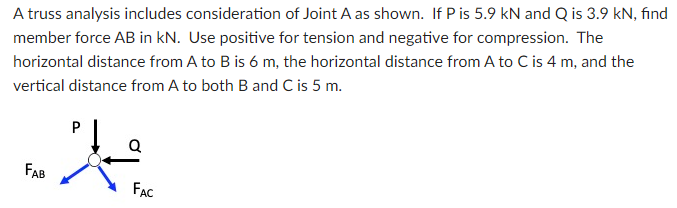

A truss analysis includes consideration of Joint A as shown. If P is 5.9 kN and Q is 3.9 kN , find member force \( A B \) in kN . Use positive for tension and negative for compression. The horizontal distance from \( A \) to \( B \) is 6 m , the horizontal distance from A to C is 4 m , and the vertical distance from \( A \) to both \( B \) and \( C \) is 5 m .
