Question: A truss analysis includes consideration of Joint ( B ) as shown. If ( B x ) is 2 . 9

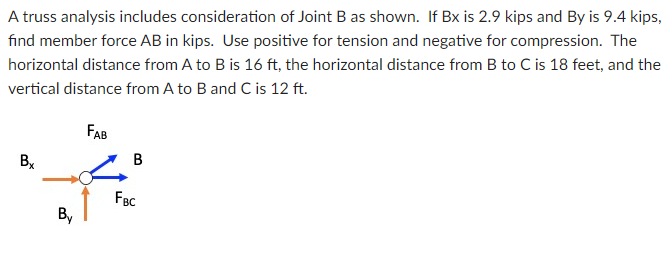

A truss analysis includes consideration of Joint \( B \) as shown. If \( B x \) is 2.9 kips and \( B y \) is 9.4 kips, find member force \( A B \) in kips. Use positive for tension and negative for compression. The horizontal distance from A to B is 16 ft , the horizontal distance from B to C is 18 feet, and the vertical distance from \( A \) to \( B \) and \( C \) is 12 ft .
A truss analysis includes consideration of Joint
