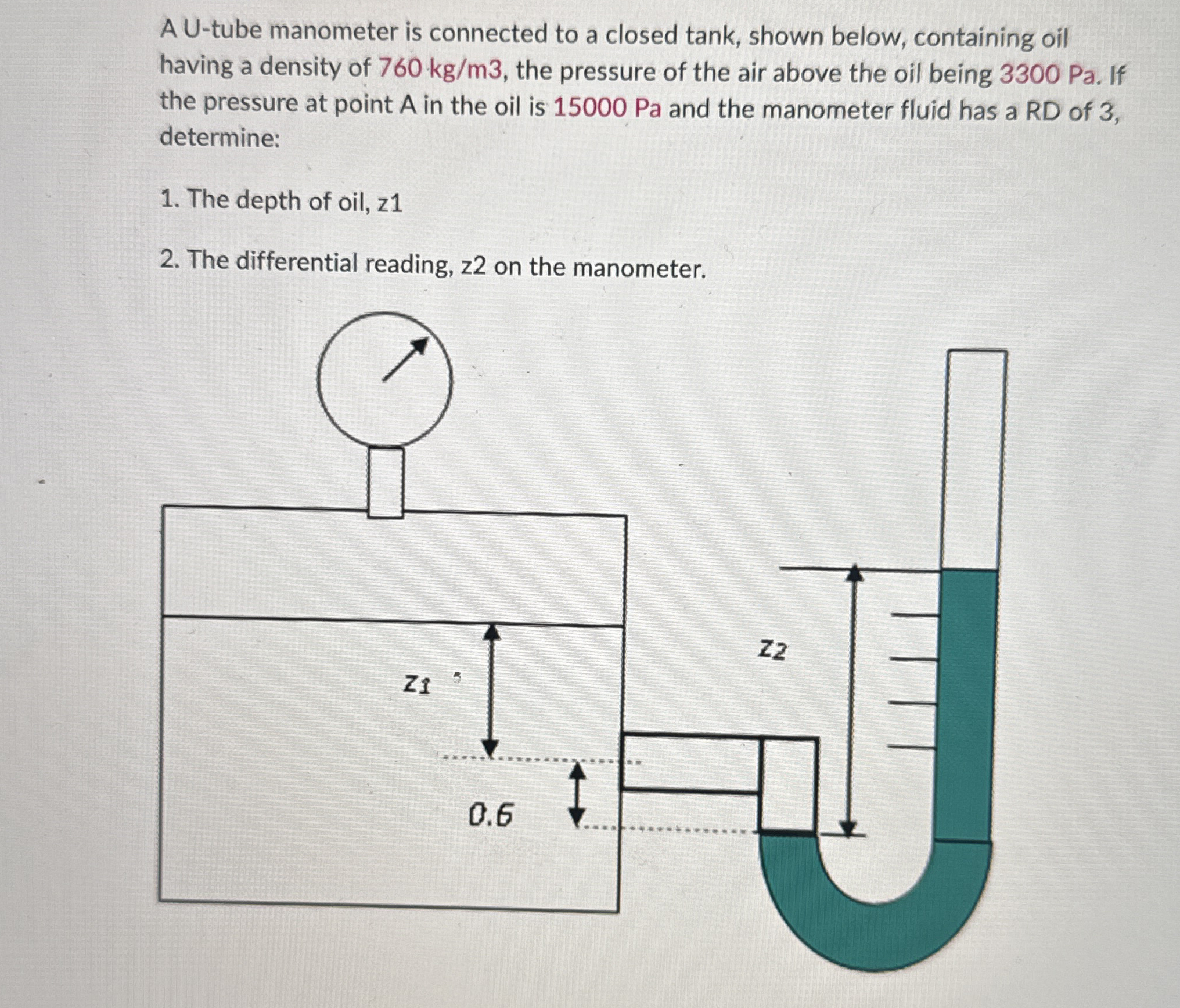

Question: A U - tube manometer is connected to a closed tank, shown below, containing oil having a density of 7 6 0 k g m

A U-tube manometer is connected to a closed tank, shown below, containing oil
having a density of 760kgm3, the pressure of the air above the oil being 3300 Pa . If
the pressure at point A in the oil is 15000 Pa and the manometer fluid has a RD of 3,
determine:
The depth of oil, z1
The differential reading, z2 on the manometer.
A U - tube manometer is connected to a closed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
