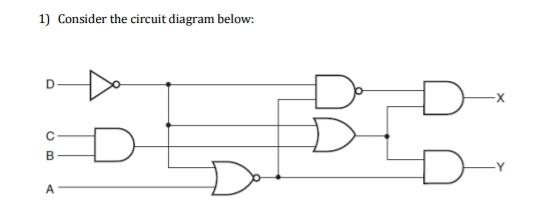

a) Use factoring and decomposition to reduce the gate input cost of this circuit, so
that it is 8 or less.
i) Write the resulting Boolean functions for X and Y; [10]
ii) Draw the circuit and indicate the gate input cost [4]
