Question: a) Use the mesh-current method to determine the power associated with each voltage source in the circuit shown in Fig. 4.21. b) Calculate the voltage

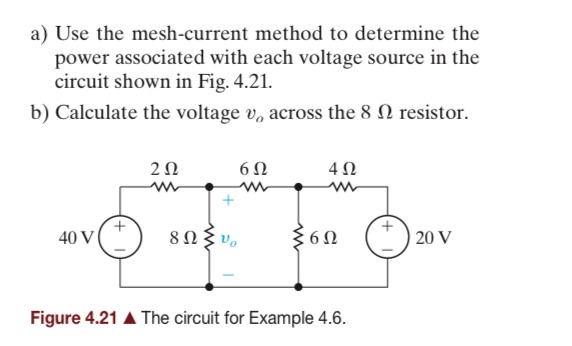

a) Use the mesh-current method to determine the power associated with each voltage source in the circuit shown in Fig. 4.21. b) Calculate the voltage v, across the 8 ( resistor. Figure 4.21 A The circuit for Example 4.6

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
