Question: ( a ) Using singularity functions, write the equations for the shear and bending froblom 5 . 1 0 8 moment for the beam and

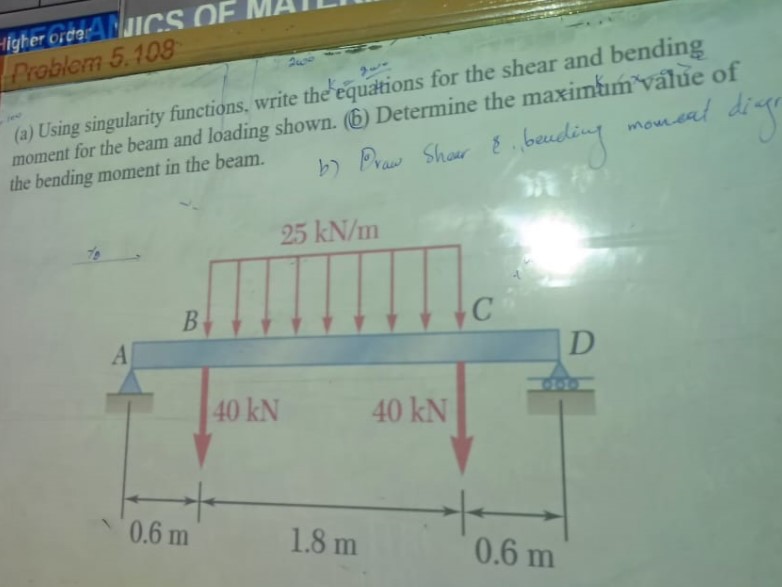

(a) Using singularity functions, write the equations for the shear and bending
froblom 5.108 moment for the beam and loading shown. (b) Determine the maximum value of the bending moment in the beam.
b) Prow shour E., bualing moneal diey
%,25kNm
( a ) Using singularity functions, write the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

froblom 5 . 1 0 8 moment for the beam and loading shown. ( b ) Determine the maximum value of the bending moment in the beam. b ) Prow shour E . , bualing moneal diey % , ( a ) Using singularity...

Q:

Using singularity functions, write the equations defining the shear and bending moment for the beam and loading shown. ( b ) Use the equation obtained for M to determine the bending moment at point C...

Q:

2 A simply supported beam of length 3 m , carries the uniformly distributed load and two point loads as shown in Figure 3 . ( a ) Using singularity functions, write the equations for the shear and...

Q:

Given: w = 2 6 kN / m Using the singularity functions, write the equations for the shear and bending moment for the beam and loading shown. Hint: What are the support reactions? Hint: What does the...

Q:

Given: w = 2 7 k N m Using the singularity functions, write the equations for the shear and bending moment for the beam and loading shown. Hint: What are the support reactions? Hint: What does the...

Q:

Given: w = 2 5 k N m Using the singularity functions, write the equations for the shear and bending moment for the beam and loading shown. Hint: What are the support reactions? Hint: What does the...

Q:

R 1 ) A beam \ ( A C \ ) of length \ ( L = 6 \ mathrm { ~m } \ ) carries a uniformly distributed load \ ( w _ { 0 } = 8 \ mathrm { kN } / \ mathrm { m } \ ) part way across its length. The beam is...

Q:

a ) Find all reaction forces. b ) Draw the shear and bending - moment diagrams for the beam and loading shown. c ) Determine the maximum normal stress due to bending. Using singularity fucntions; d )...

Q:

The simply - supported beam shown below has constant E I throughout its length. a ) Using the basic singularity functions provided in Table 5 . 1 6 of the textbook ( also available in the Class 3 8...

Q:

Using singularity functions, a ) ( \ % 1 0 ) Write the equations for the shear and bending moment for the beam and loading shown. b ) ( \ % 1 0 ) Determine the maximum normal stress due to bending.
