Question: A . What is the determinancy? Solve using formula. B . Find all reactions of the truss using a free body diagram. C . Find

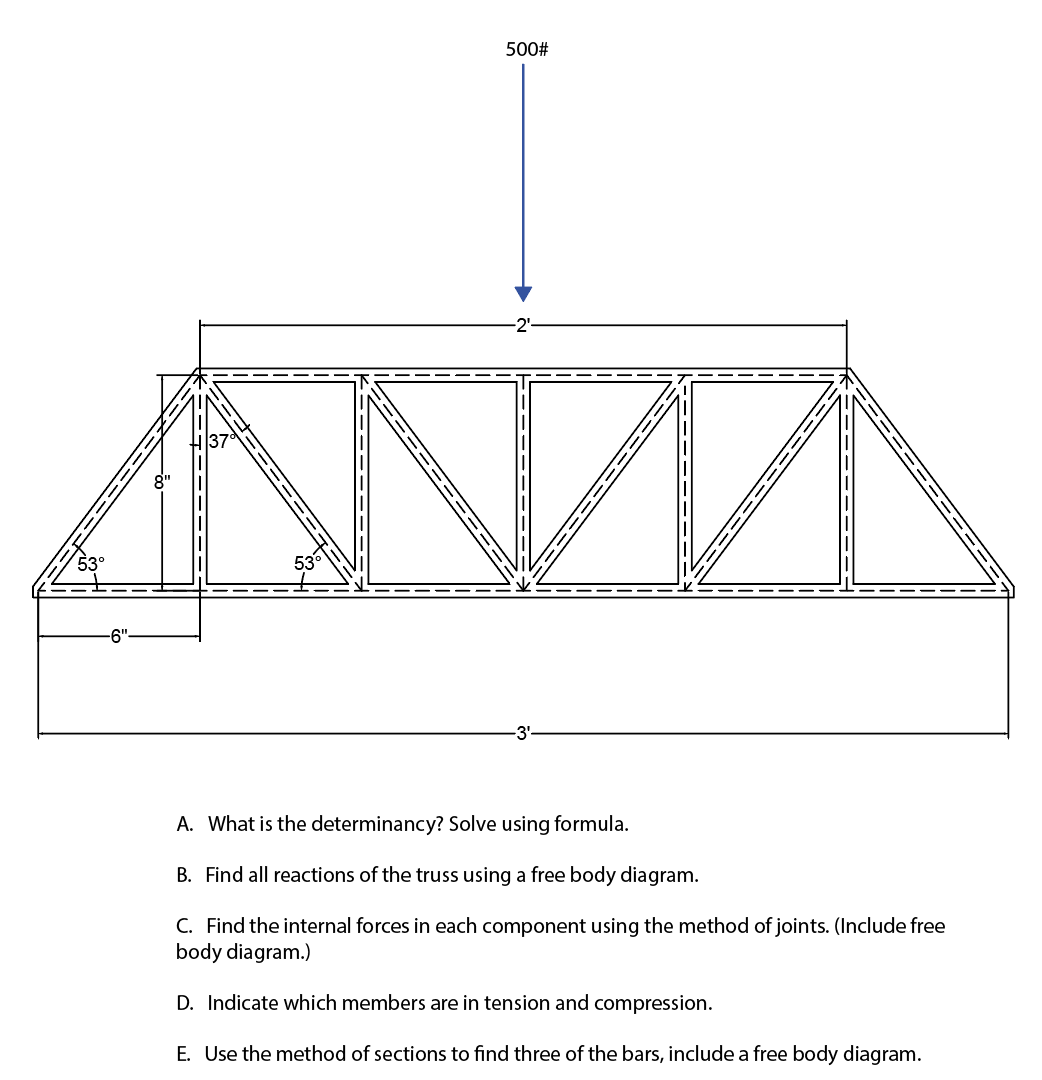

A. What is the determinancy? Solve using formula.
B. Find all reactions of the truss using a free body diagram.
C. Find the internal forces in each component using the method of joints. (Include free
body diagram.)
D. Indicate which members are in tension and compression.
E. Use the method of sections to find three of the bars, include a free body diagram.
A . What is the determinancy? Solve using

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
