Question: a) When A = 0, B = 1, C = 1, and D = 0 b) When A = 0, B = 0, C =

a) When A = 0, B = 1, C = 1,

a) When A = 0, B = 1, C = 1, and D = 0

b) When A = 0, B = 0, C = 1, and D = 1

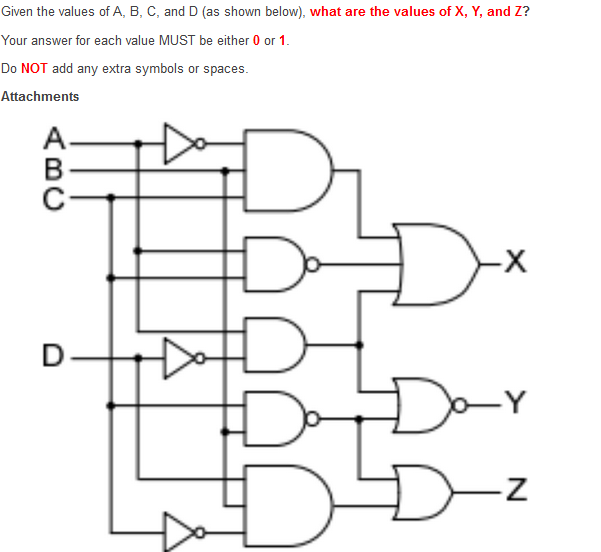

Given the values of A, B, C, and D (as shown below), what are the values of X, Y, and Z? Your answer for each value MUST be either 0 or 1. Do NOT add any extra symbols or spaces. Attachments . B -X D Dar Z

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
