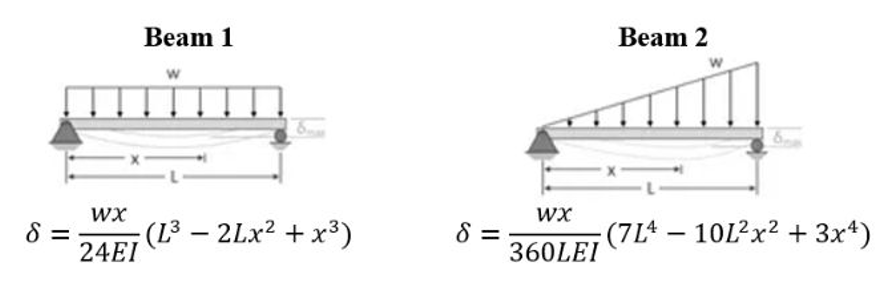

a$)$ write the commands required to plot the deflections of both of the below beams against the distance from left support $($x$).$ The graphs are to be plotted in two separat subplot rows. Consider x values ranging between $0$ and L at an increment of Imm. Label both subplots with proper x axis and y axis labels & display the gridlines. The deflection functions are given below:

Beam $2$

Where:

E $=$ Modulus of elasticity $=200000$kN$/$mm$^2$

L$=$ Beam Length $=600$cm

I $=$ Moment of inertia $=1$x$10^5$ mm$^4$

w$=$ Uniform distributed load $=20$kN$/$m

b$)$ Write a single MATLAB command which displays

the maximum deflection in beam

c$)$ Write the value of the maximum deflection in beam $2$ in mm$.($round your answer to four decimal places$)$

d$)$ Write a single MATLAB command which displays the position $($x value$)$ at which that maximum deflection occurs in beam $2.$

e$)$ Write the x value in mm at which the maximum

deflection occurs in beam $2.($round your answer to the closest integer$)$
