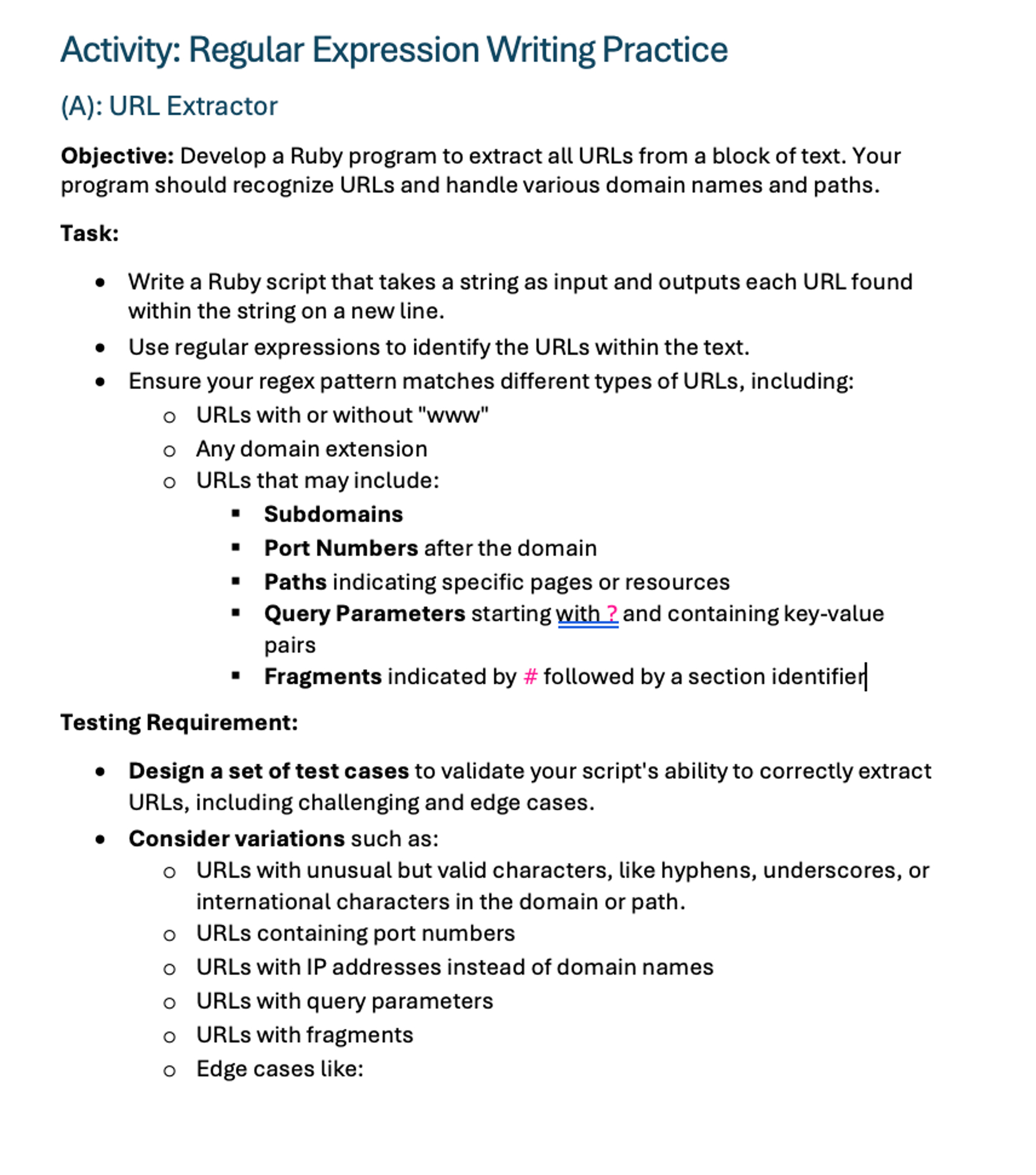

Activity: Regular Expression Writing Practice

Make sure all test code is done via rspec in ruby!!!

$($A$)$: URL Extractor

Objective: Develop a Ruby program to extract all URLs from a block of text. Your

program should recognize URLs and handle various domain names and paths.

Task:

Write a Ruby script that takes a string as input and outputs each URL found

within the string on a new line.

Use regular expressions to identify the URLs within the text.

Ensure your regex pattern matches different types of URLs, including:

URLs with or without $"$www$"$

Any domain extension

URLs that may include:

Subdomains

Port Numbers after the domain

Paths indicating specific pages or resources

Query Parameters starting with $?$ and containing key$-$value

pairs

Fragments indicated by # followed by a section identifier

Testing Requirement:

Design a set of test cases to validate your script's ability to correctly extract

URLs, including challenging and edge cases.

Consider variations such as:

URLs with unusual but valid characters, like hyphens, underscores, or

international characters in the domain or path.

URLs containing port numbers

URLs with IP addresses instead of domain names

URLs with query parameters

URLs with fragments

Edge cases like:

URLs missing certain parts $($e$.$g$.,$ no path$).$

URLs adjacent to punctuation in the text

Strings that resemble URLs but are invalid

Include negative tests where the input contains strings that look like URLs

but are not valid, ensuring your script does not mistakenly identify them as

URLs.

$($B$)$: Invoice Parser

Objective: Create a Ruby program that parses structured text containing multiple

invoice entries and extracts key details from each entry.

Task:

Construct a Ruby script that processes a string with multiple lines, where

each line represents an invoice entry formatted as $[$Date$]-[$Invoice Number$]$

$[$Client Name$]-[$Amount$].$

Extract the date, invoice number, client name, and amount from each line

and display them in a structured format.

Specifications:

Date: Should follow the format YYYY$-$MM$-$DD$.$ Ensure that dates conform to

this format and represent valid calendar dates.

Invoice Number: Alphanumeric codes $($e$.$g$.,$ INV$001).$ They may include

letters and numbers.

Client Name: May contain letters, spaces, and common punctuation marks

$($like periods, commas, apostrophes$).$

Amount: Should be in US dollars, prefixed with a dollar sign $($e$.$g$.,$ $$1000).$

Amounts may:

Be whole numbers $($e$.$g$.,$ $$1000).$

Include cents $($e$.$g$.,$ $$2050\mathrm{.}75).$

Have commas as thousand separators $($e$.$g$.,$ $$1,000).$

Testing Requirement:

Develop a set of test cases to assess your script's ability to handle various

invoice formats and edge cases.

Consider variations such as:

Valid Variations:

Amounts with cents $($e$.$g$.,$ $$2050\mathrm{.}75).$

Amounts with thousand separators $($e$.$g$.,$ $$1,000,$ $$10,000\mathrm{.}50).$

Client names with special characters $($e$.$g$.,$ O'Connor Ltd$.,$ Smith

& Sons, Inc.$).$

Entries with extra spaces or tabs between fields.

Invalid Variations:

Dates not in YYYY$-$MM$-$DD format $($e$.$g$.,03/01/2023,2023\mathrm{.}03\mathrm{.}01).$

Amounts not in US dollars $($e$.$g$.,1500,1000$ without a dollar

sign$).$

Missing fields or malformed lines $($e$.$g$.,$ missing the client name

or amount$).$

Incorrectly formatted amounts $($e$.$g$.,$ $$1000\mathrm{.}7,$ $$1000\mathrm{.}789$ with

more than two decimal places$).$

Include tests that check how your script handles invalid entries, ensuring it

can gracefully handle or report errors.

Example Code Template:

def parse$\_$invoices$($invoice$\_$data$)$

end

invoice$\_$entries INVOICES

$2023-03-01-$ INV$001-$ Acme Corp $-$ $$1000$

$2023-03-02-$ INV$002-$ Beta LLC $-$ $$2050$

$2023-03-03-$ INV$003-$ Gamma Inc $-$ $$3500$

INVOICES

parse$\_$invoices$($invoice$\_$entries$)$

Expected Output:

Date: $2023-03-01,$ Invoice Number: INV$001,$ Client: Acme Corp, Amount: $$1000$

Date: $2023-03-02,$ Invoice Number: INV$002,$ Client: Beta LLC$,$ Amount: $$2050$

Date: $2023-03-03,$ Invoice Number: INV$003,$ Client: Gamma Inc, Amount: $$3500$

Write all tests using rspec!
