a.Draw a completely analysed activity-on-node network for the software module assuming that the project is to be completed in the shortest possible time. Your analysis should show the results of the forward and backward passes and the activity floats in the same form as the one in the discussion for Block 3 Part 3 Activity 3.5.

Use the conventions and notation given in Block 3 Part 3, and make sure your network starts with the node Start and finishes with the node Finish. Your diagram should include a key showing the meaning of the compartments in a node and identify the critical path for the project.

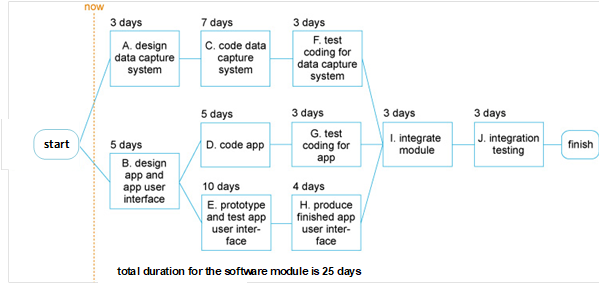

now 3 days 7 days A. design data capture system C. code data capture system 3 days F. test coding for data capture system 5 days 3 days 3 days 3 days start D. code app G. test coding for app I. integrate module J. integration testing finish 5 days B. design app and app user interface 10 days E. prototype and test app user inter- face 4 days H. produce finished app user inter- face total duration for the software module is 25 days
