Question: Advanced physics 3. Starting with zero charge on the capacitor and an open switch in the circuit shown below, close the switch at time t

Advanced physics

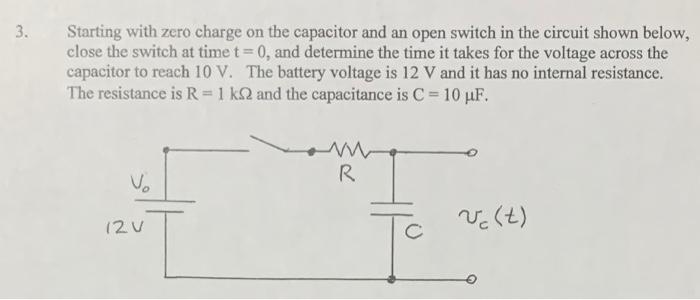

3. Starting with zero charge on the capacitor and an open switch in the circuit shown below, close the switch at time t = 0, and determine the time it takes for the voltage across the capacitor to reach 10 V. The battery voltage is 12 V and it has no internal resistance. The resistance is R = 1 kQ2 and the capacitance is C = 10 pF. R Vo 12 V v. (t ) C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

l_1_.|._1_1_l A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 0, R3 = 117 Q and R4 = 127 Q. The...

(d) Using the result of the previous question, fill in the value of 7 obtained from each fit in Data Table 1 and use the value of Rmeas to calculate Lexpt. Determine the percent difference between...

Shown in the figure below is an RC circuit. The battery has a voltage of 5.90 Volts, the resistor has R = 8500 0, and the capacitor has C = 3.35e-06 Farads. While the switch is open, there is no...

[2/20 Points] DETAILS PREVIOUS ANSWERS Shown in the figure below is an RC circuit. The battery has a voltage of 5.90 Volts, the resistor has R = 8500 0, and the capacitor has C = 3.35e-06 Farads....

A circuit is constructed with four resistors, one capacitor, one battery, and a switch as shown. The values for the resistors are: R = R = 76 N, R3 = 65 N. and R = 61 2. The capacitance is C = 50 F...

Remote Lab 6 - RC CIRCUITS is and ni i sonofalem ban jollapans Learning Goals: goldsuzie gnigysdozib to gnigisdo and) Tertia al sulev Isilini all 10 RVE of gob of Jivanjo After completing this...

SIMULATIONS TEACHlNG RESEARCH iNiTiATiVES \"NA" Q E a mmmm w w p, -, y Circuit Construction Kit: AC - Virtual Lab a Ii 0 2. Click to run the program (There is a download option too, you can download...

I need help filling in the data tables asap I understand it is a lot V1-28, V2-29 live your phone number at the solution I will sell you extra 10 $ LAB-11 (LK) RC CIRCUITS q(t) = Q e HC (4] 5/26/2022...

https://phet.colorado.edu/en/simulations/circuit-construction-kit-ac include conclusion at the end RC CIRCUIT SIMULATION Introduction In this simulation you will study the behavior of the current and...

University Physics II Experiment 5: RC Circuits Objective: We have assumed that emf and resistances are constant, so that the potentials, currents, and powers are time independent. When looking at...
