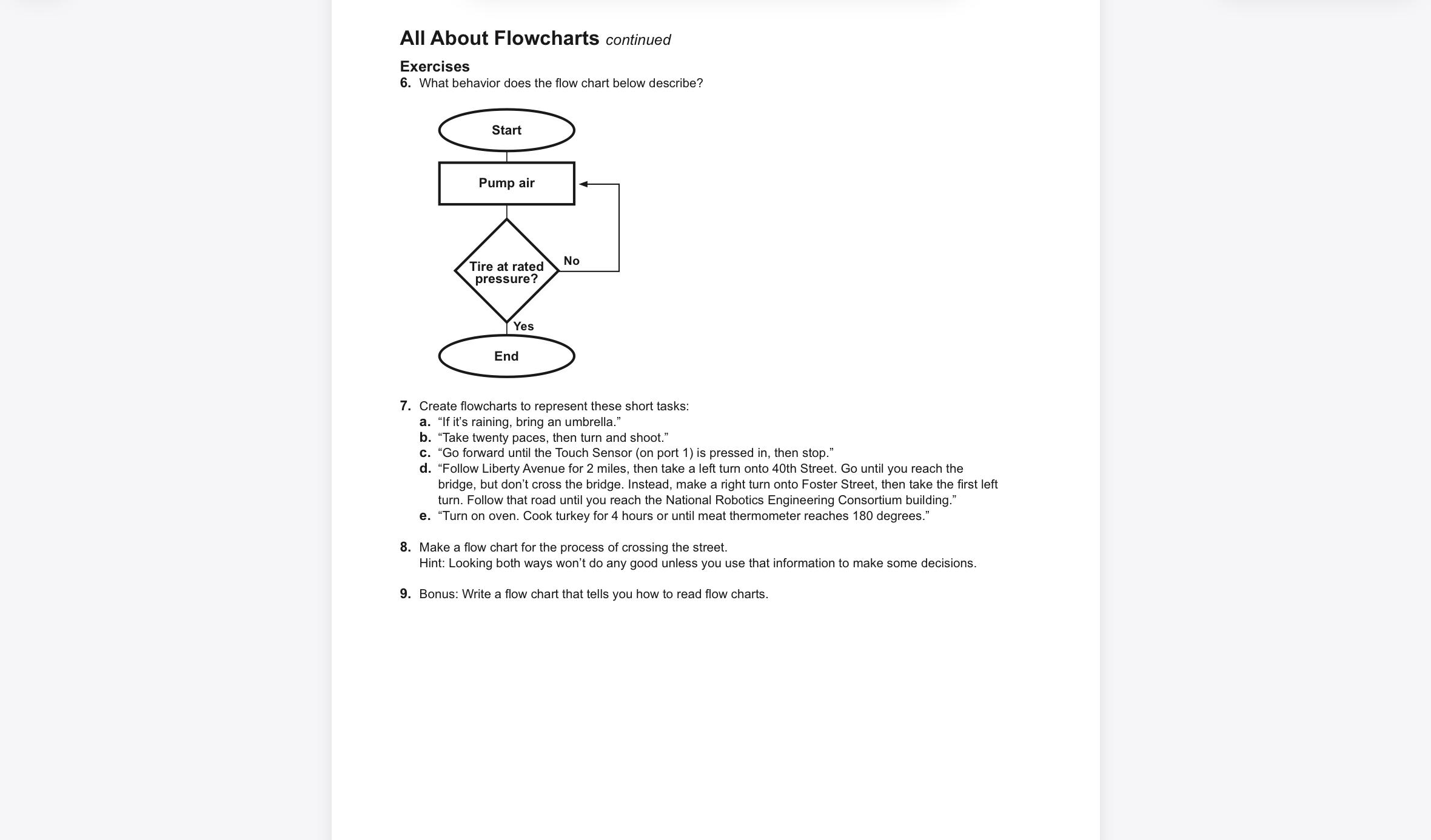

All About Flowcharts continued

Exercises

$6.$ What behavior does the flow chart below describe?

$7.$ Create flowcharts to represent these short tasks:

a$."$If it's raining, bring an umbrella."

b$.$ "Take twenty paces, then turn and shoot."

c$."$Go forward until the Touch Sensor $($on port $1)$ is pressed in$,$ then stop."

d$.$ "Follow Liberty Avenue for $2$ miles, then take a left turn onto $40$th Street. Go until you reach the bridge, but don't cross the bridge. Instead, make a right turn onto Foster Street, then take the first left turn. Follow that road until you reach the National Robotics Engineering Consortium building."

e$.$ "Turn on oven. Cook turkey for $4$ hours or until meat thermometer reaches $180$ degrees."

$8.$ Make a flow chart for the process of crossing the street. Hint: Looking both ways won't do any good unless you use that information to make some decisions.

$9.$ Bonus: Write a flow chart that tells you how to read flow charts.
