Question: All problems must include a free body diagram, an exploded free body diagram, and designation of whether the memebers are in tension or compression. Determine

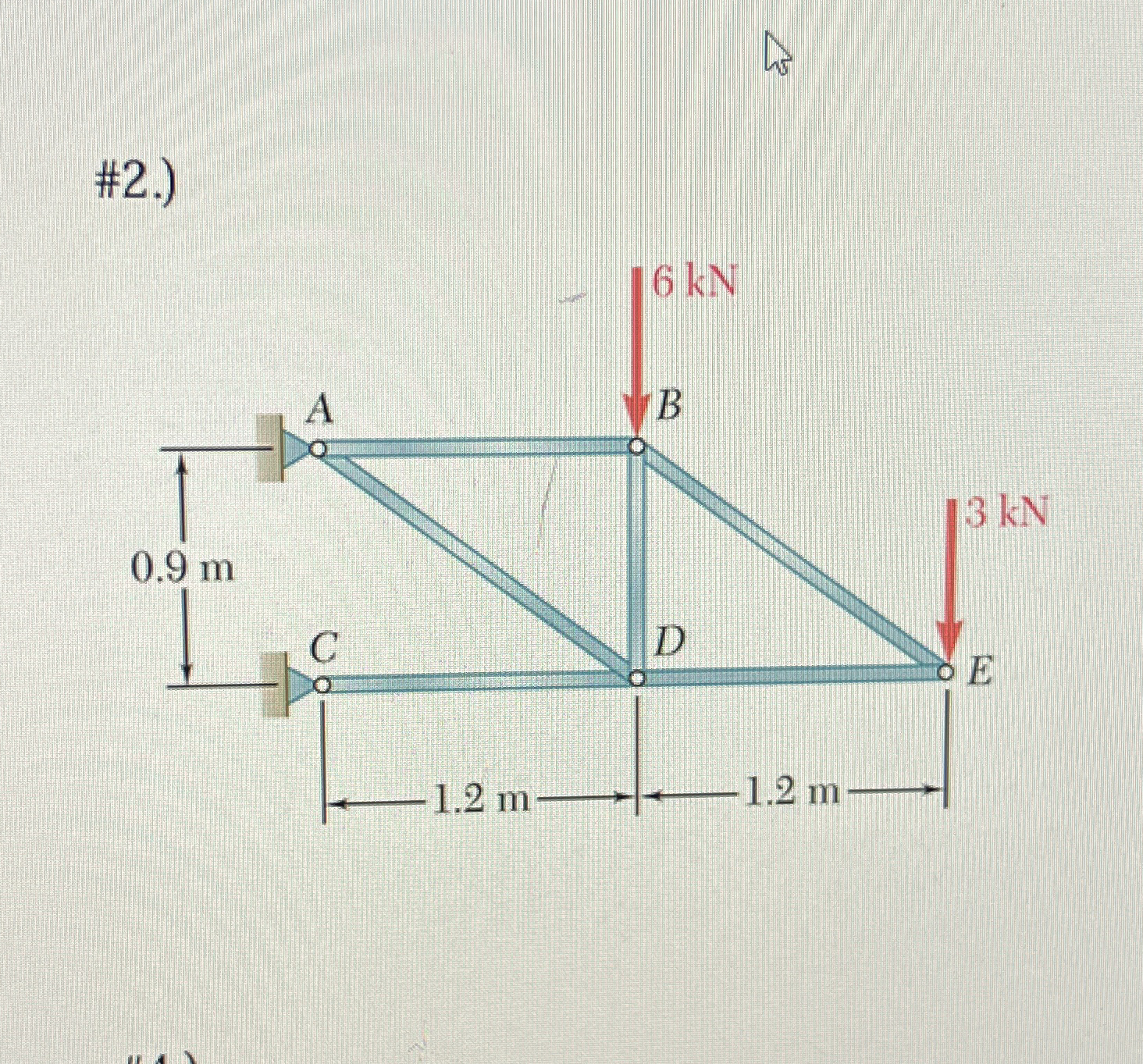

All problems must include a free body diagram, an exploded free body diagram, and designation of whether the memebers are in tension or compression. Determine the reaction forces and force acting on each member of the truss. For your final answer, submit an exploded free body diagram with the magnitude of the force acting on each member and whether it is in tension or compression or if it is a zero force member.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Questions For all the problems consider 9 = 9.8 m/s2. 1. A block whose mass is 6.0 kg sits on a level floor. The coefficient of static friction between the block and the floor is 0.42. What...

hii can you answer each question with explanation. Because I have no clue how to do them thanks. They are 19 questions desi Name: Stay and e a) What is the maximum acceleration of the blocks before...

Associated Reading Previous course work on frames Kassimali Structural Analysis, Chapter 5 Objectives Review solving for shear, moment, and axial diagrams for determinate, stable frames Practice...

1. Mechanical Equilibrium By a definition, a system is in mechanical equilibrium if the sum of the forces acting on that system is equal to zero (i.c. E F = 0). If we combine this with Newton's 2"...

Assignment Problem 1 For each of the frames in Figure 1 , solve for the reactions and draw the axial, shear, and moment diagrams. Your final answers and presentation of them is the only thing that...

1 . Given the truss shown in the figure below: a . Complete the overall free body diagram for the truss by drawing ALL the reaction forces at A and G . b . c . d . Determine the reactions at supports...

CAN SOMEONE HAELP W 5 QUESTIONS?? I ATTACHED MY PREVIOUS ATTEMPT AND COMMENTS GIVEN BY TEACHER 1. A ball is attached to a string and swung in a horizontal circle at a constant speed. Assume air...
