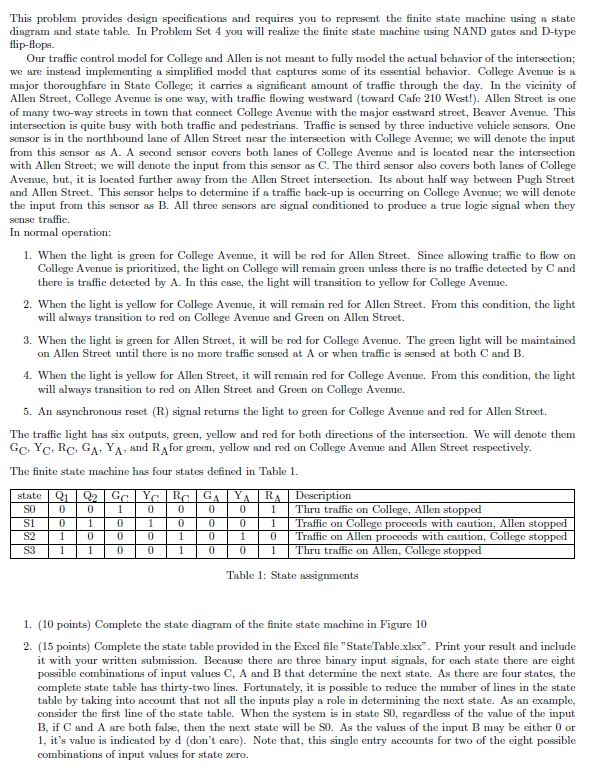

Question: Also, this is a MOORE finite state machine. Please answer question 1 and 2 legibly and upload images one by one. We will be considering

Also, this is a MOORE finite state machine. Please answer question

1 and 2 legibly and upload images one by one. We will

be considering a three-way intersection, College Avenue where it intersects with Allen

Street. A drawing of the intersection is shown in figure 2 College

Also, this is a MOORE finite state machine.

Please answer question 1 and 2 legibly and upload images one by one.

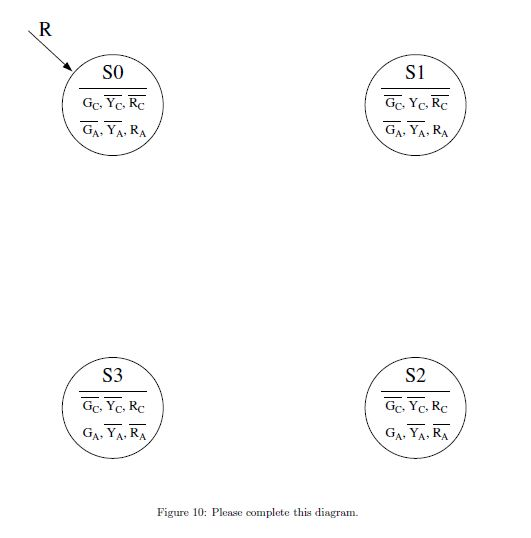

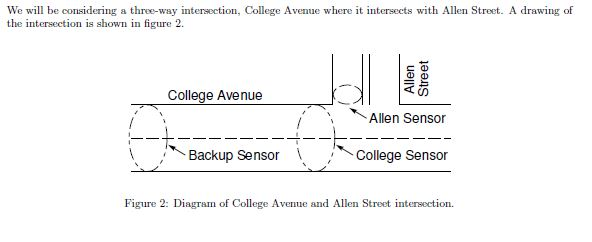

We will be considering a three-way intersection, College Avenue where it intersects with Allen Street. A drawing of the intersection is shown in figure 2 College Avenue Allen Sensor Backup Sensor College Sensor 2: Diagram of College Aveue and Allen Stret intersection. We will be considering a three-way intersection, College Avenue where it intersects with Allen Street. A drawing of the intersection is shown in figure 2 College Avenue Allen Sensor Backup Sensor College Sensor 2: Diagram of College Aveue and Allen Stret inter
