Masonry Dimensioning

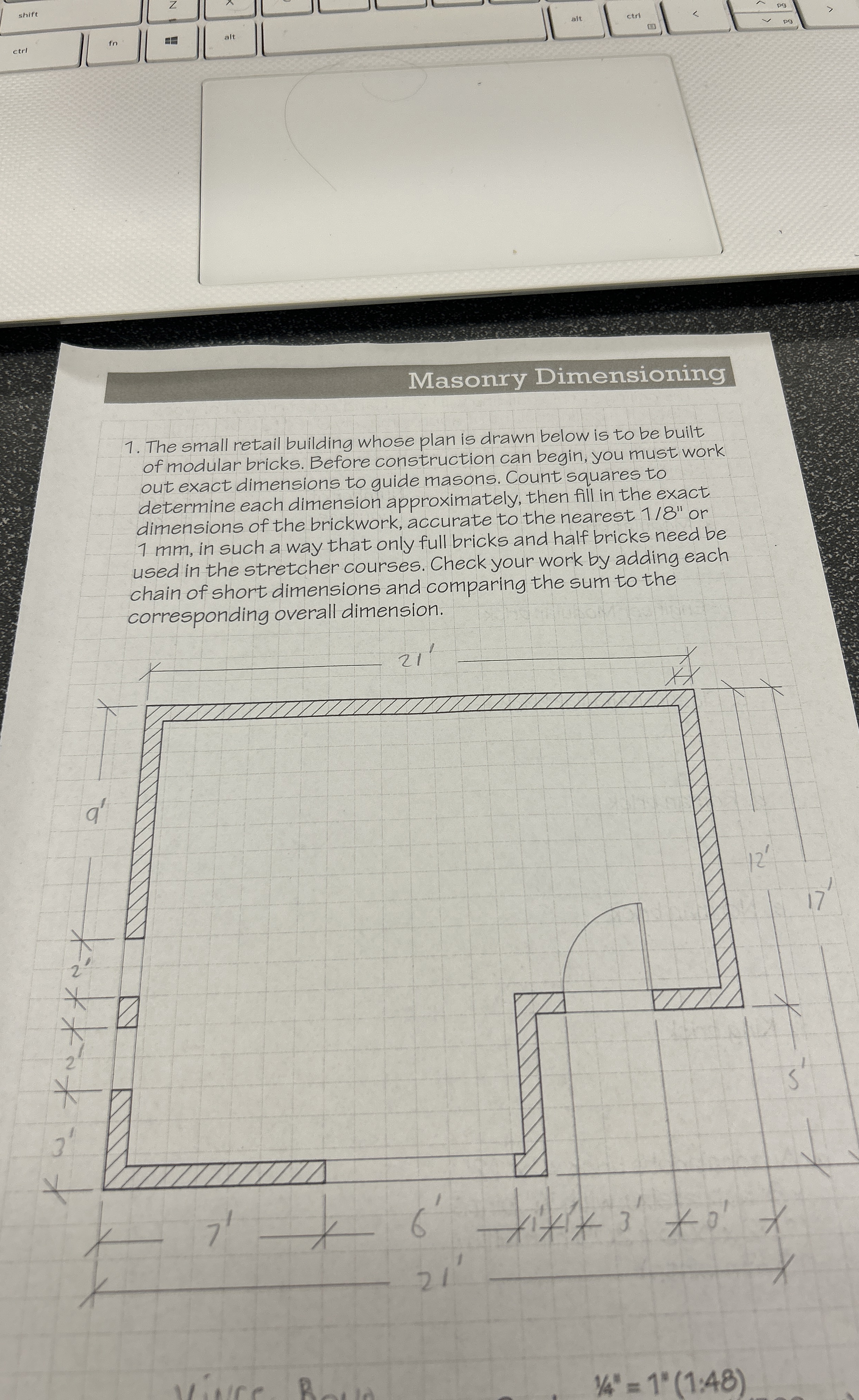

The small retail building whose plan is drawn below is to be built of modular bricks. Before construction can begin, you must work out exact dimensions to guide masons. Count squares to determine each dimension approximately, then fill in the exact dimensions of the brickwork, accurate to the nearest $\frac{1}{8^{\text{'}\text{'}}}$ or $1$ mm $,$ in such a way that only full bricks and half bricks need be used in the stretcher courses. Check your work by adding each chain of short dimensions and comparing the sum to the corresponding overall dimension.
