Question: Question 4 : ( 5 points ) Calculate the Support reactions at points A and C . The support at C is fixed and A

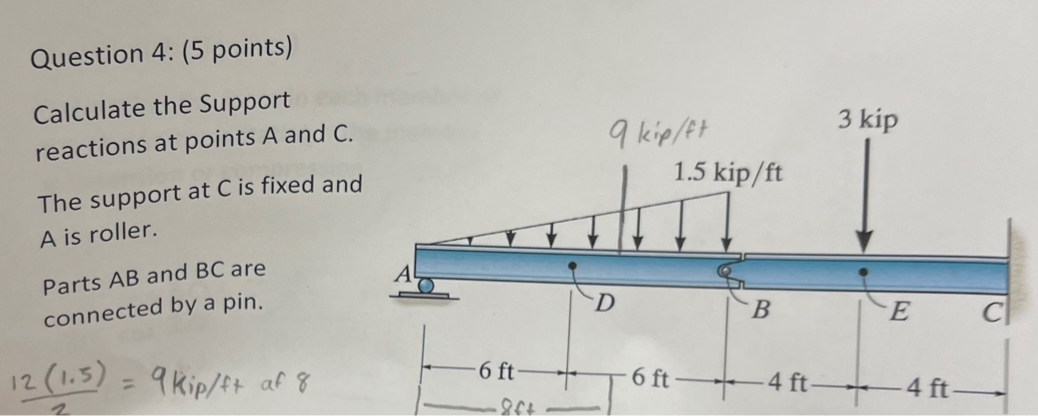

Question 4: (5 points)
Calculate the Support reactions at points A and C.
The support at C is fixed and A is roller.
Parts AB and BC are connected by a pin.
12(1.5)2=9kipft of 8
Question 4 : ( 5 points ) Calculate the Support

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
